Features
- High performance LGA2011 Xeon E5 series CPU (up to 8 cores) supported
- Increased channel counts by 4 channels of 2 DIMMs per channel with DDR3 1600/1333 MHz support up to 64 GB w/ UDIMMs, 128 GB w/ RDIMMs and 256 GB w/ LRDIMMs
- Sever management features are supported by IPMI & iKVM protocols
- Integrated PCI Express Gen 3 for improved bandwidth and connectivity support up to 40 lanes at 8 GT/s
- Intel Matrix RAID supports 0/1/10/5 for SATA and 0/1/10 for SAS hard drive interfaces
- VGA display output driver form on-board IC via AST1300 for all Xeon E5 series CPU
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA2011 socket supports Intel Xeon E5-16xx, E5-26xx, E5-46xx series (up to 8 cores) processor
- System Chipset: Intel C604
- Memory: Eight 240-pin 1600/1333 MHz dual-channel DDR3 SDRAM UDIMMs w/ ECC or non-ECC/RDIMMs/LRDIMMs supported
(system max. 64 GB w/ UDIMMs, 128 GB w/RDIMMs, 256 GB w/ LRDIMMs) - BIOS: UEFI BIOS
- Ethernet: Dual Intel 82574L PCIe controller
- Server Management:
1 x RJ-45 for Intelligent Platform Management Interface (IPMI) v.2.0
IPMI 2.0 with virtual media over LAN and iKVM-over-LAN support - Graphics Engine:
ASPEED AST2300
PCIe VGA/2D controller, 1920x1200@60Hz 32bpp - Display Output: 1 x VGA (driver form AST2300)
- Super I/O: Fintek F81866
- Audio: Realtek ALC662 HD audio codec (Line-out, Mic)
- I/O Interface:
2 x USB 3.0 (2 on rear)
11 x USB 2.0 (4 on rear, 6 by pin header, 1 by type A)
1 x RS-232 (on rear I/O)
4 x SATA 3 Gb/s (RAID 0/1/10/5 support)
1 x PS/2 KB/MS
2 x SATA 6 Gb/s (RAID 0/1/10/5 support)
4 x SAS 3 Gb/s (RAID 0/1/10 support) - Front Panel:
1 x Front panel connector (power LED, HDD LED, LAN LED, speaker, power button, reset button) - Front Audio: 2 x 5-pin header
- TPM: 2 x 10-pin header
- SMBus: 1 x 4-pin wafer
- I2C: 1 x 4-pin wafer
- PMBus: 1 x 5-pin box header
- Expansions: 4 x PCIe x8 slots
- Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Digital I/O: 8-bit Digital I/O (4-bit input / 4-bit output)
- Fan Connector:
1 x 4-pin CPU fan connector
5 x 4-pin system fan connector - Power Supply: ATX/AT power supply
- Power Consumption: Vcore_12 V@5.86 A, 12 V@1.03 A, 5 V@1.72 A, 3.3 V@1.01 A, 5 Vsb@0.47 A
(Intel Xeon E5-2658 2.1 GHz with four 1333 MHz 4 GB DDR3 memory) - Operating Temperature: -10 ~ +60°C
- Operating Humidity: 5 ~ 95%, non-condensing
- Dimensions: 244 x 305 mm
- Weight: GW: 1200 g/NW: 700 g

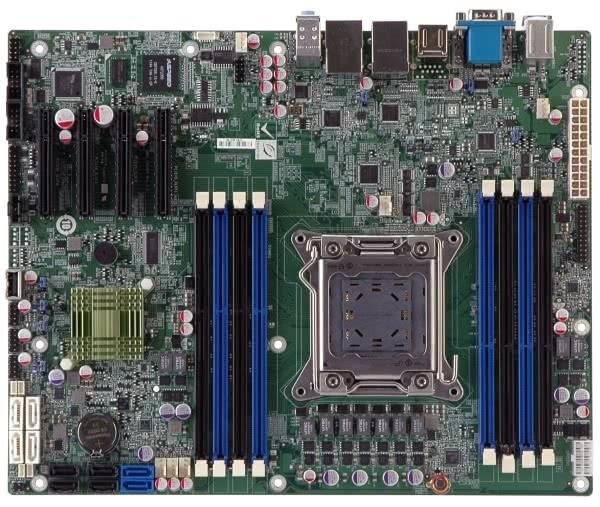

- IMBA-C604EP-R10 - ATX server board supports 32 nm LGA2011 Intel Xeon E5 series up to 8 cores CPU with Intel C604, DDR3, VGA, dual Intel PCIe GbE, PCIe Gen 3.0, SAS 3 Gb/s, SATA 6 Gb/s, SATA 3 Gb/s, USB 2.0, HD Audio and RoHS
- CB-USB02-RS - Dual-port USB cable with bracket
- 32102-000100-200-RS - SATA power cable
- CF-2011A-RS - High performance LGA2011 cooler kit, 1U chassis compatible, 130 W
- CF-2011B-RS - High performance LGA2011 cooler kit, 2U chassis compatible, 130 W
- TPM-IN01-R11 - 20-pin Infineon TPM module, SW management tool, firmware V3.17
