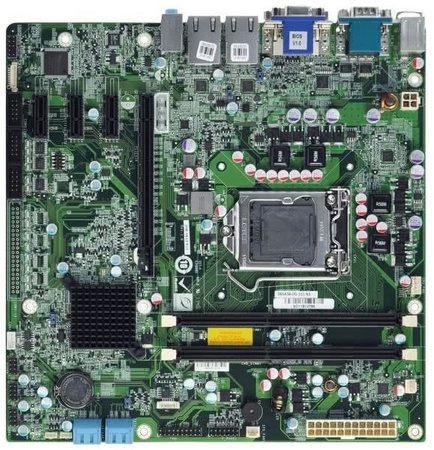

IMB-H610A

  • Płyta główna Micro-ATX z podstawką LGA1155 dla procesorów Intel Core i7/i5/i3, VGA/DVI-D, 2 x PCIe GbE, 5 x RS-232, 1 x RS-422/485, 10 x USB 2.0, 4 x SATA-2 i HD-audio
  • IMB-H610A
Features
  • LGA1155 Intel Core i7/i5/i3/Pentium/Celeron processor supported
  • Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
  • Intel HD Graphics technology integrates high-performance graphics and media processing
  • TPM V1.2 hardware security provided by the TPM module
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Specifications
  • CPU: LGA1155 socket supports Intel Core i7/i5/i3 quad/Dual, Pentium dual, Celeron dual/single core processor
  • System Chipset: Intel H61
  • Memory: Two 240-pin 1333/1066 MHz dual-channel unbuffered DDR3 SDRAM DIMMs supported
    (system max. 16 GB)
  • BIOS: UEFI BIOS
  • Ethernet:
    Dual Realtek RTL8111E PCIe GbE controller, LAN1 with ASF 2.0 support
  • Graphics Engine:
    Intel HD Graphics 2000/3000 (based on CPU type)
    Support for DX10.1 and OpenGL 3.0
    Full MPEG2, VC1, AVC Decode
  • Display Output: Dual display supported
    1 x VGA
    1 x DVI-D
  • Super I/O: Fintek F81866
  • Audio: Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic)
  • I/O Interface:
    5 x RS-232
    1 x RS-422/485
    4 x SATA 3 Gb/s without RAID & AHCI
    10 x USB 2.0 (4 by rear IO, 6 by pin header)
    1 x PS/2 KB/MS
  • Front Audio: 1 x 10-pin header
  • Front Panel:
    1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)
  • TPM: 1 x 20-pin header
  • SMBus: 1 x 4-pin wafer
  • I2C: 1 x 4-pin wafer
  • Expansions:
    1 x PCIe x16 slot
    3 x PCIe x1 slots
  • Watchdog Timer: Software programmable supports 1~255 sec. system reset
  • Digital I/O: 8-bit programmable I/O
  • Fan Connector:
    1 x 4-pin CPU fan connector
    2 x 3-pin system fan connector
  • Power Supply: ATX/AT power supply
  • Power Consumption: 3.3 V@1.75 A, 5 V@6.61 A , Vcore@3.68 A, 12 V@0.09 A, 5 sb@0.12 A
    (Intel 2.60 GHz CPU with four 1333 MHz 4 GB DDR3 memory)
  • Operating Temperature: -10 ~ +60°C
  • Operating Humidity: 5 ~ 95%, non-condensing
  • Dimensions: 244 x 244 mm
  • Weight: GW: 1200 g/NW: 680 g
Ordering Information
  • IMB-H610A-R10 - microATX motherboard supports LGA1155 Intel Core i7/i5/i3/Pentium/Celeron CPU with Intel H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE, USB 2.0, 6 COM, SATA 3 Gb/s, HD Audio and RoHS
Optional Accessories
  • 19800-003100-200-RS - Dual-port USB cable with bracket

  • 32205-003800-100-RS - RS-422/485 cable, 200 mm

  • 32102-000100-200-RS - SATA power cable

  • 32205-001203-100-RS - Quad-port RS-232 cable with bracket, 400/400/400/400 mm

  • TPM-IN01-R11 - 20-pin Infineon TPM module, software management tool, firmware V3.17

  • CPU-DT-i5-2500T - Intel Core i5-2500T processor, LGA1155, quad core 2.3 GHz, 6 M cache, 45 W, compatible with CF-1156C-RS CPU cooler

  • CPU-DT-i5-2390T - Intel Core i5-2390T processor, LGA1155, dual core 2.7 GHz, 3 M cache, 35 W, AMT, compatible with CF-1156C-RS CPU cooler

  • CPU-DT-i3-2100T - Intel Core i3-2100T processor, LGA1155, dual core 2.5 GHz, 3 M cache, 35 W, compatible with CF-1156C-RS CPU cooler

  • CPU-DT-P-G620T - Intel Pentium G620T processor, LGA1155, dual core 2.2 GHz, 3 M cache, 35 W, compatible with CF-1156C-RS CPU cooler

  • CPU-DT-C-G440 - Intel Celeron G440 processor, LGA1155, single core 1.6 GHz, 1 M cache, 35 W, compatible with CF-1156C-RS CPU cooler

  • CF-1156A-RS - High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73 W

  • CF-1156B-RS - High-performance LGA1155/LGA1156 cooler kit, 95 W

  • CF-1156C-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45 W

  • CF-1156D-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65 W
