Features
- LGA1155 Intel Core i7/i5/i3/Pentium/Celeron processor supported
- Up to 16 GB 1333 MHz dual-channel DDR3 SDRAM
- Intel HD Graphics technology integrates high-performance graphics and media processing
- TPM V1.2 hardware security provided by the TPM module
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA1155 socket supports Intel Core i7/i5/i3 quad/Dual, Pentium dual, Celeron dual/single core processor
- System Chipset: Intel H61
- Memory: Two 240-pin 1333/1066 MHz dual-channel unbuffered DDR3 SDRAM DIMMs supported
(system max. 16 GB) - BIOS: UEFI BIOS
- Ethernet:
Dual Realtek RTL8111E PCIe GbE controller, LAN1 with ASF 2.0 support - Graphics Engine:
Intel HD Graphics 2000/3000 (based on CPU type)
Support for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode - Display Output: Dual display supported
1 x VGA
1 x DVI-D - Super I/O: Fintek F81866
- Audio: Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic)
- I/O Interface:
9 x RS-232
1 x RS-422/485
4 x SATA 3 Gb/s without RAID & AHCI
10 x USB 2.0 (4 by rear IO, 6 by pin header)
1 x PS/2 KB/MS - Front Audio: 1 x 10-pin header
- Front Panel:
1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button) - TPM: 1 x 20-pin header
- SMBus: 1 x 4-pin wafer
- I2C: 1 x 4-pin wafer
- Expansions:
1 x PCIe x16 slot
3 x PCIe x1 slots - Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Digital I/O: 8-bit programmable I/O
- Fan Connector:
1 x 4-pin CPU fan connector
2 x 3-pin system fan connector - Power Supply: ATX/AT power supply
- Power Consumption: 3.3 V@1.75 A, 5 V@6.61 A , Vcore@3.68 A, 12 V@0.09 A, 5 sb@0.12 A
(Intel 2.60 GHz CPU with four 1333 MHz 4 GB DDR3 memory) - Operating Temperature: -10 ~ +60°C
- Operating Humidity: 5 ~ 95%, non-condensing
- Dimensions: 244 x 244 mm
- Weight: GW: 1200 g/NW: 680 g

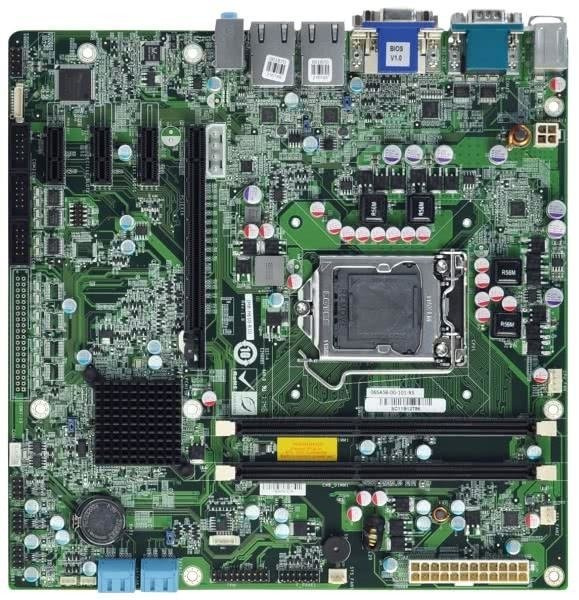

- IMB-H610B-R10 - microATX motherboard supports LGA1155 Intel Core i7/i5/i3/Pentium/Celeron CPU with Intel H61, DDR3, VGA/DVI-D, dual Realtek PCIe GbE, USB 2.0, 10 COM, SATA 3 Gb/s, HD Audio and RoHS
- 19800-003100-200-RS - Dual-port USB cable with bracket
- 32205-003800-100-RS - RS-422/485 cable, 200 mm
- 32102-000100-200-RS - SATA power cable
- 32205-001203-100-RS - Quad-port RS-232 cable with bracket, 400/400/400/400 mm
- TPM-IN01-R11 - 20-pin Infineon TPM module, software management tool, firmware V3.17
- CPU-DT-i5-2500T - Intel Core i5-2500T processor, LGA1155, quad core 2.3 GHz, 6 M cache, 45 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-i5-2390T - Intel Core i5-2390T processor, LGA1155, dual core 2.7 GHz, 3 M cache, 35 W, AMT, compatible with CF-1156C-RS CPU cooler
- CPU-DT-i3-2100T - Intel Core i3-2100T processor, LGA1155, dual core 2.5 GHz, 3 M cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-P-G620T - Intel Pentium G620T processor, LGA1155, dual core 2.2 GHz, 3 M cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CPU-DT-C-G440 - Intel Celeron G440 processor, LGA1155, single core 1.6 GHz, 1 M cache, 35 W, compatible with CF-1156C-RS CPU cooler
- CF-1156A-RS - High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73 W
- CF-1156B-RS - High-performance LGA1155/LGA1156 cooler kit, 95 W
- CF-1156C-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45 W
- CF-1156D-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65 W
