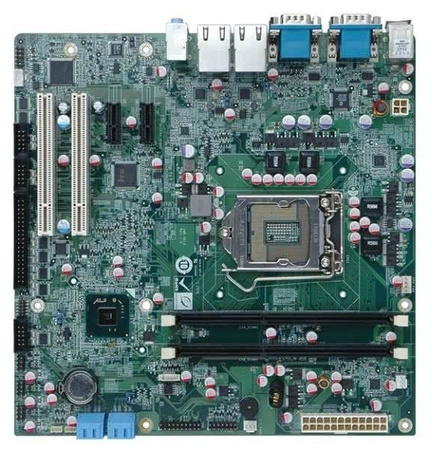

IMB-H612A

  • Płyta główna Micro-ATX z podstawką LGA1155 dla procesorów Intel Core i7/i5/i3, 2 x VGA, 2 x PCIe GbE, 5 x RS-232, 1 x RS-422/485, 10 x USB 2.0, 4 x SATA-2I i HD-audio
  • IMB-H612A
Features
  • LGA1155 Intel Core i7/i5/i3 processor supported
  • Dual-channel 1333 MHz DDR3/DDR3L (1.35V) supports up to 16 GB
  • Intel HD Graphics technology integrates high-performance graphics and media processing
  • Supports independent display output via dual VGA
  • Supports legacy PCI 32-bit 33/66 MHz
  • Supports lower power 1.35 V DDR3 memory
  • TPM V1.2 hardware security function supported by TPM module
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Specifications
  • CPU: LGA1155 socket supports Intel Core i7/i5/i3 quad/dual, Pentium dual, Celeron dual/single core processor
  • System Chipset: Intel H61
  • Memory: Two 240-pin 1333/1066 MHz dual-channel DDR3/DDR3L (1.35V) SDRAM unbuffered DIMM supported (system max. 16 GB)
  • BIOS: UEFI BIOS
  • Ethernet: Dual Realtek RTL8111E PCIe GbE controller,
    LAN1 with ASF 2.0 supported
  • Graphics Engine:
    VGA1: Intel HD Graphics 2000/3000 (Base on CPU type)
    Support for DX10.1 and OpenGL 3.0
    Full MPEG2, VC1, AVC Decode
    Resolution supports up to 2048 x 1536 @75Hz
    VGA2: Chrontel CH7317B
    Resolution supports up to 1920 x 1200 @60Hz
  • Display Output: Dual display supported
    2 x VGA
  • Super I/O: Fintek F81866
  • PCIe to PCI Bridge IC: ITE IT8893E
  • Audio: Realtek ALC662 HD Audio codec (Line-in, Line-out, Mic)
  • I/O Interface:
    5 x RS-232
    1 x RS-422/485
    1 x PS/2 KB/MS
    4 x SATA 3 Gb/s without RAID & AHCI
    10 x USB 2.0 (4 by rear IO, 6 by pin header)
  • Front Audio: 2 x 5-pin header
  • TPM: 2 x 10-pin header
  • SMBus: 1 x 4-pin wafer
  • I2C: 1 x 4-pin wafer
  • Expansions:
    2 x PCIe x1 slots
    2 x PCI slots
  • Watchdog Timer: Software programmable supports 1~255 sec. system reset
  • Digital I/O: 8-bit programmable I/O
  • Fan Connector:
    1 x 4-pin CPU fan connector
    2 x 3-pin system fan connector
  • Power Supply: AT/ATX power supply supported
  • Power Consumption:
    12 V@0.27 A, Vcore@5.3 A, 5 V@2.0 A, 3.3 V@1.0 A
  • Operating Temperature: -10 ~ +60°C
  • Operating Humidity: 5 ~ 95%, non-condensing
  • Dimensions: 244 x 244 mm
  • Weight: GW: 1200 g/NW: 680 g
Ordering Information
  • IMB-H612A-R10 - microATX motherboard supports 32nm LGA1155 Intel Core i7/i5/i3 CPU per Intel H61, DDR3, VGA, dual PCIe GbE, PCI, 6 COM, LPT, USB 2.0, SATA 3Gb/s, Audio and RoHS
Optional Accessories
  • 19800-003100-100-RS - Dual-port USB cable with bracket

  • 32205-003800-100-RS - RS-422/485 cable, 200mm

  • 32102-000100-200-RS - SATA power cable

  • CF-1156A-RS - High-performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73 W

  • CF-1156B-RS - High-performance LGA1155/LGA1156 cooler kit, 95 W

  • CF-1156C-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45 W

  • CF-1156D-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65 W

  • 32205-001203-100-RS - Quad-port RS-232 cable with bracket, 400/400/400/400 mm

  • 19800-000049-RS - LPT cable

  • TPM-IN01-R11 - 20-pin Infineon TPM module, software management tool, firmware V3.17
