Features
- LGA1155 Intel Xeon E3 and Intel Core i3 processors supported
- Dual-channel DDR3 1600/1333 MHz supports up to 32 GB
- Intel PCIe GbE with Intel AMT 8.0 supported
- Support PCI-Express generation 3.0 at 8 GT/s I/O bandwidth
- USB 3.0 and SATA 6 Gb/s supported
- Supports much scalable serial ports
- High-speed interface usage for two PCIe x8/two PCIe x4 add-on cards
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: LGA1155 socket supports Intel Xeon E3 and Intel Core i3 quad/dual core processors
- System Chipset: Intel C216
- Memory: Four 240-pin 1600/1333 MHz dual-channel DDR3 SDRAM ECC and non-ECC unbuffered DIMMs supported (system max. 32 GB)
- BIOS: UEFI BIOS
- Ethernet:
Intel 82579 PHY with Intel AMT 8.0 supported
Intel 82574L PCIe controller - Graphics Engine:
Supports DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode - Display Output:
VGA integrated in the Intel C216 (up to 2048 x 1536 @75 Hz) - Super I/O: Fintek F81866
- Audio: Realtek ALC662 HD audio codec (Line-in, Line-out, Mic)
- I/O interface:
9 x RS-232
1 x RS-422/485
4 x USB 3.0 (rear I/O)
10 x USB 2.0 (4 on rear, 6 by pin header)
4 x SATA 3 Gb/s
2 x SATA 6 Gb/s (RAID 0/1/5/10 support)
1 x PS/2 KB/MS - Front Audio: 2 x 5-pin header
- Front Panel: 1 x Front panel connector (power LED, HDD LED, speaker, power button, reset button)
- TPM: 2 x 10-pin header
- SMBus: 1 x 4-pin wafer
- I2C: 1 x 4-pin wafer
- Infrared Interface: 1 x 5-pin infrared by pin header
- Expansions:
1 x PCIe x16 slot
1 x PCIe x16 slot (with x8 signal)
2 x PCIe x4 slot - Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Digital I/O: 24-bit Digital I/O (24-bit GPIO is for programming I/O)
- Fan Connector:
1 x 4-pin CPU fan connector
2 x 3-pin system fan connector - Power Supply: ATX power supply
- Power Consumption:
3.3 V@0.96 A, 5 V@4.33 A, 12 V@3.5 A, 12 V@2.09 A, 5 Vsb@0.1 A
(3.10 GHz Intel Xeon CPU with two 1333 MHz 4 GB DDR3 memory) - Operating Temperature: -10 ~ +60°C
- Operating Humidity: 5 ~ 95%, non-condensing
- Dimensions: 244 x 244 mm
- Weight: GW: 1200 g/NW: 700 g

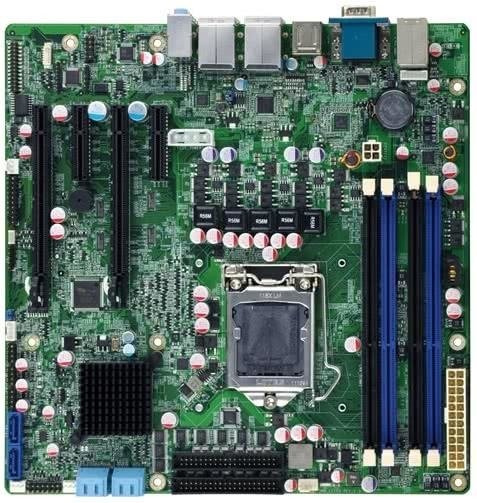

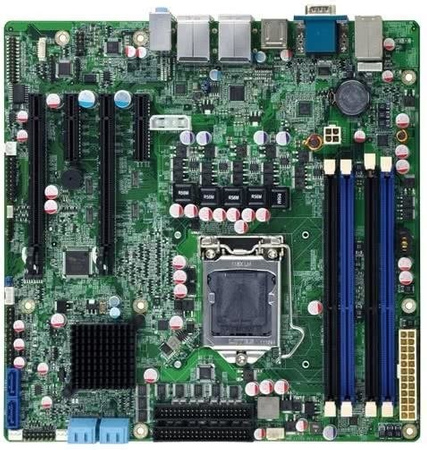

- IMB-C2160-R10 - microATX motherboard supports 22nm LGA1155 Intel Xeon E3/Intel Core i3 CPU with Intel C216, DDR3, VGA, dual Intel PCIe GbE, USB 3.0, SATA 6Gb/s, ten serial ports, HD Audio and RoHS
- 19800-003100-200-RS - Dual-port USB cable with bracket
- 32006-000300-100-RS - Male PS/2 KB/MS Y-cable w/o bracket, 12 cm (KB)+14 cm (MS)
- 32205-003800-100-RS - RS-422/485 cable, 200 mm
- 32205-001203-100-RS - Quad-port RS-232 cable without bracket, 400/400/400/400 mm
- 32102-000100-200-RS - SATA power cable
- 19800-000075-RS - PS/2 KB/MS Y-cable with bracket, 6-pin header, 220 mm
- CF-1156A-RS - High performance LGA1155/LGA1156 cooler kit, 1U chassis compatible, 73 W
- CF-1156B-RS - High performance LGA1155/LGA1156 cooler kit, 95 W
- CF-1156C-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 45 W
- CF-1156D-RS - LGA1155/LGA1156 cooler kit, 1U chassis compatible, 65 W
- TPM-IN01-R11 - 20-pin Infineon TPM module, SW management tool, firmware V3.17
