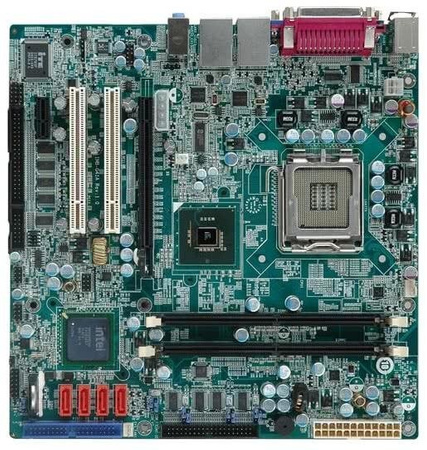

Name: IMB-G41A
Brand: IEI Integration Corp.

Features

Support for the next-generation 45nm Intel Core2 processor family with faster system performance
Intel GMA X4500 delivers an excellent blend of graphics performance
Integrated VGA and PCIe x16 SDVO add-on card for dual display
Diverse I/O interfaces, including 10 COM ports, four SATA 3Gb/s ports
Support dual-channel DDR3 SDRAM DIMM up to 8GB (max.)
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: LGA775 45nm Intel Core2 Quad, Core2 Duo, Pentium D, Celeron at FSB 800/1066/1333 MHz processors
System Chipset: Intel G41+ICH7
Memory: Two 240-pin 4 GB (max.) 800/1066 MHz dual-channel DDR3 SDRAM DIMM supported (System max. 8 GB)
BIOS: AMI BIOS
Ethernet: Dual Realtek RTL8111CP PCIe GbE controllers
Display Interface: Intel GMA X4500
Supports DirectX 10 / OpenGL 1.5
One VGA supports analog CRT up to 2048x1536 @ 75 MHz
Super I/O: ITE IT8783F
Audio: Realtek ALC888 HD Audio codec
I/O Interface:
1 x IDE
8 x USB 2.0
1 x LPT
4 x SATA 3Gb/s
2 x PS/2 for KB/MS
1 x RS-232/422/485
9 x RS-232 (COM7~COM10 with 5V/12V jumper selection)
Infrared Interface: 1 x Infrared connector by 5-pin header
Extension:
1 x PCIe x16 slot
1 x PCIe x1 slot
2 x PCI slot
Watchdog Timer: Software programmable support 1~255 sec. system reset
Digital I/O: 8-bit digital I/O, 4-bit input / 4-bit output
Fan Connector:
1 x 4-pin CPU fan connector
1 x 3-pin North-Bridge fan connector
1 x 3-pin system fan connector
Power Supply: ATX power
Power Consumption: 5 V@7.42 A, 3.3 V@0.15 A, 12 V@0.27 A, Vcore@3.03 A
3.16 GHz Intel Core2 Duo E8500 and 4 GB 1066 MHz DDR3
Temperature: Operation: -10 ~ +60°C
Humidity: Operation: 5% ~ 95%, non-condensing
Dimensions: 244 x 244mm
Weight: GW: 1200 g / NW: 700 g

Ordering Information

IMB-G41A-R10 - Micro ATX motherboard supports 45nm LGA775 Intel Core 2 Quad CPU with a 1333/1066/800MHz FSB, PCIe x16, PCIe x1, two PCI, ten COM, dual PCIe GbE, SATA 3Gb/s and audio, RoHS
