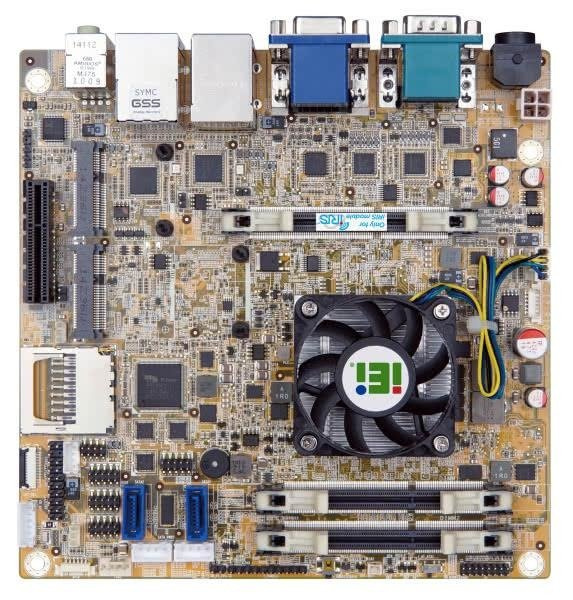

Płyta główna Mini-ITX z procesorem AMD quad-core GX-424CC 2.4 GHz (25 W), VGA/LVDS, 2x PCIe GbE, 4x RS-232, 1x RS-422/485, 2x USB 3.0, 4x USB 2.0, 2x SATA-3 i HD audio (0 ~ +60°C)
Features
- Mini-ITX form fator with AMD Embedded G-Series SoC
- 12 V only single voltage design with AT/ATX support
- Dual independent display by VGA and dual HDMI
- Support dual PCIe Mini card slot for mSATA, wireless card and DOM
- Support IPMI 2.0 with iRIS module
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Specifications
- SoC: AMD Embedded G-Series "Steppe Eagle" SoC
GX-424CC on-board Soc (2.4 GHz, quad-core, 2 MB cache, TDP=25 W) - BIOS: AMI UEFI BIOS
- Memory: Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB - Graphics Engine: GPU frequency 500 MHz (Radeon HD 8330E)
• Support DX11.1, OpenGL 4.1 and OpenCL1.2
• UVD4.2 decode for H.264, MPEG2/4, VC1, MVC
• VCE 2.0 encode for H.264, VCE - Display Out:
• VGA (up to 2048x1536@60 Hz)
• LVDS - Ethernet:
• GBE1: Intel I210-AT PCIe controller with NCSI support
• GBE2: Intel I211-AT PCIe controller - Super IO: Fintek F81866
- I/O Interfaces:
• 1 x RS-422/485
• 4 x RS-232 (1 on rear I/O, 3 by pin header)
• 1 x SD card
• 2 x SATA 6 Gb/s with SATA power connector
• 2 x USB 3.0 (2 on rear I/O)
• 4 x USB 2.0 (2 on rear I/O, 2 by pin header)
• 1 x mSATA (colay SATA port 2)
• 1 x 6-pin wafer for PS/2 KB/MS - iRIS Remote Management Module: 1 x iRIS-2400 slot
- SMBus: 1 x 4-pin (1x4) wafer
- Audio: Realtek AL892 HD Audio codec
• 1 x S/PID by 4-pin (1x4) header for digital audio
• 1 x Line-out / Mic-in audio jack on rear IO - Front Panel: 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
- LAN LED: 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED
- Expansion:
• 1 x Half-size PCIe Mini card slot
• 1 x PCIe x4 slot - Digital I/O: 8-bit digital I/O (4-bit input / 4-bit output)
- Fan Connector: 1 x 4-pin system fan connector
- Watchdog Timer: Software programmable, support 1~255 sec. system reset
- Power Supply:
• 12 V only DC input
• 1 x Internal 4-pin (2x2) power connector
• 1 x External DC jack (4-pin DIN)
• Support AT/ATX mode - Power Consumption: +12 V@ 1.45 A
(AMD GX-415GA 1.5 GHz CPU with 1333 MHz 2 GB DDR3 memory) - Operating Temperature: 0 ~ +60°C
- Storage Temperature: -20 ~ +85°C
- Operating Humidity: 5 ~ 95%, non-condensing
- Dimensions: 170 x 170 mm
- Weight: GW:600 g/ NW:250 g
Ordering Information
- KINO-SE-i2-4241-R10 - Mini-ITX SBC with 28nm AMD GX-424CC on-board SoC (quad-core, 2.4GHz, 25W) with VGA/LVDS, Dual GbE, Dual PCIe Mini, USB 3.0, SATA 6 GB/s, iRIS-2400, Audio and RoHS
Optional Accessories
- iRIS-2400-R10 - IPMI 2.0 adapter card with AST2400 BMC chip for DDR3 SODIMM socket interface
- 19800-000300-100-RS - RS-232 cable with bracket, 300 mm
- 19800-003000-200-RS - Dual-port USB cable with bracket, 300 mm
- 32205-003800-100-RS - RS-422/485 cable, 200 mm
- TPM-IN01-R11 - 20-pin Infineon TPM module, software management tool, firmware V3.17
