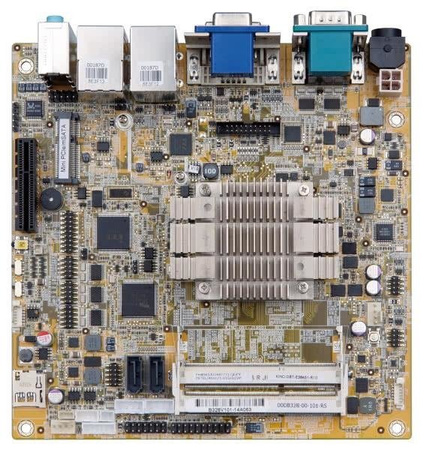

KINO-DBT-N29301

Płyta główna Mini-ITX z procesorem quad-core Intel Celeron N2930 1.83 GHz, VGA/DVI-D/iDP, 2x GbE, 5x RS-232, 1x RS-422/485, 2x USB 3.0, 6x USB 2.0, 2x SATA-2 i HD-audio (-20 ~ +70°C)

Features

• Mini-ITX SBC with 22 nm Intel Atom on-board SoC
• 1.35 V DDR3L 1066/1333 MHz SDRAM supporting up to 8 GB of memory
• Dual independent display support
• COM, USB 3.0, SATA 6 Gb/s, PCIe Mini, mSATA and HD Audio support
• Support Intel VT-x techology

Specifications

• SoC: Intel Celeron N2930 on-board SoC (1.83 GHz, quad-core, 2 MB cache, TDP=7.5 W)
• BIOS: AMI UEFI BIOS
• Memory: 2 x 204-pin 1066/1333 MHz dual-channel DDR3L SO-DIMM supported
  (system max. 8 GB)
• Graphics Engine:
  Intel HD Graphics Gen 7 Engines with 4 execution units, supporting DX11.1, OpenGL 4.2 and OpenCL1.2
• Display Output:
  Dual independent display
  VGA (up to 2560x1600 @ 60 Hz)
  DVI-D (up to 1920x1080 @ 60 Hz)
  iDP interface for HDMI, LVDS, VGA, DVI, DP (up to 2560x1600 @60 Hz)
• Ethernet: Dual Realtek RTL8111E PCIe GbE controller
• External I/O Interface:
  2x RS-232
  2x USB 2.0
  2x USB 3.0
• Internal I/O Interface:
  1x KB/MS (1x6 pin)
  1x RS-422/485 (1x4 pin, P=2.0)
  4x USB 2.0 (2x4 pin, P=2.0)
  3x RS-232 (2x5 pin, P=2.54)
  2x SATA 3 Gb/s with 5 V, 12 V SATA power connector
• SMBus: 1x SMBus (1x4 pin)
• TPM: 1x TPM (2x10 pin)
• Audio: Realtek ALC662 HD codec supports 5.1 channel
• Front Panel:
  1 x Front panel (2x7 pin, Power LED, HDD LED, Speaker, Power Button, Reset Button)
• LAN LED: 2x LAN LED (1x2 pin)
• Expansion:
  1x Full-size PCIe Mini card slot
  1x microSD slot (E38XX SKU only)
  1x PCIe x4 slot (with PCIe x1 signal)
  1x mSATA share with SATA port 2
• Digital I/O: 8-bit digital I/O (2x5 pin)
• Fan Connector:
  1x CPU smart fan (1x4 pin)
  1x System smart fan (1x4 pin)
• Power Supply:
  12 Vdc input
  1x External 4-pin DIN DC jack
  1x Internal 4-pin (2x2) power connector
• Power Consumption: 12 V@1.64 A
  (Intel Celeron J1900 CPU with 4 GB 1333 MHz DDR3L memory)
• Watchdog Timer: Software programmable support 1~255 sec. system reset
• Operating Temperature: -20 ~ +70°C
• Storage Temperature: -30 ~ +85°C
• Operating Humidity: 5 ~ 95%, non-condensing
• Dimensions: 170 x 170 mm
• Weight: GW:900 g/NW: 400 g

Ordering Information

• KINO-DBT-N29301-R10 - Mini-ITX SBC supports Intel Celeron quad-core processor N2930 (7.5W), VGA/DVI/iDP, Dual Intel PCIe GbE, USB 3.0, SATA, HD Audio and RoHS

Optional Accessories

• 32205-003800-300-RS - RS-422/485 cable


• 32205-002700-100-RS - RS-232 cable, 2, 200 mm, D-SUB 9, 2*5P P=2.0


• 32006-000300-100-RS - PS/2 KB/MS Y-cable without bracket


• DP-LVDS-R10 - DisplayPort to 24-bit dual-channel LVDS converter board (for IEI iDP connector)


• DP-HDMI-R10 - DisplayPort to HDMI converter board (for IEI iDP connector)


• DP-DVI-R10 - DisplayPort to DVI-D converter board (for IEI iDP connector)


• DP-VGA-R10 - DisplayPort to VGA converter board (for IEI iDP connector)


• DP-DP-R10 - DisplayPort to DisplayPort converter board (for IEI iDP connector)


• TPM-IN01-R11 - 20-pin Infineon TPM module, software management tool, firmware V3.17
