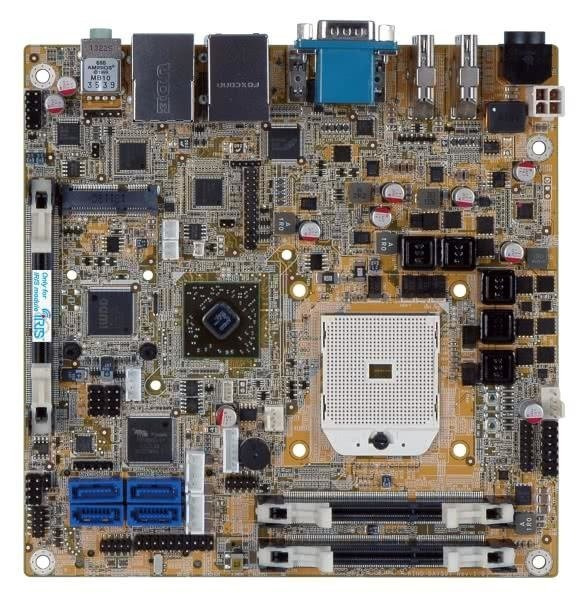

Name: KINO-DA750-i2
Brand: IEI Integration Corp.

Płyta główna Mini-ITX z podstawką FS1r2 dla procesorów AMD serii R APU, DVI-D/3 x HDMI, 2 x PCIe GbE, 2 x RS-232, 1 x RS-422/485, 2 x USB 3.0, 6 x USB 2.0, 6 x SATA-3 z RAID i HD audio

Features

Socket FS1r2 supports AMD Embedded R-Series APU
DDR3 1066/1333/1600MHz dual-channel SDRAM
Quad independent display by three HDMI 1.4a and one DVI-D
3D micro-architecture enhancement supports DX11, OCL 1.1 and OGL 4.2
Rich media acceleration for hardware decode and encode acceleration
High-speed I/O interface for USB 3.0, SATA 6 Gb/s and CFast
IEI jumper-less function
Support IPMI 2.0 via iRIS-2400 module

Specifications

CPU: Socket FS1r2 supports AMD Embedded R-Series APU
System Chipset: AMD A75
Memory: Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
BIOS: UEFI BIOS
Ethernet:
• GbE1: 1 x Intel I210-AT PCIe controller with NCSI support
• GbE2: 1 x Intel I211-AT PCIe controller
Graphics Engine: AMD Radeon GPUs (Radeon HD 7000 series),
• support DX11, UVD3, H.264, VC-1, MPEG-2, DivX
• Direct X 11, Open CL 1.1, OpenGL 4.2
Display Output:
• 3 x HDMI (rear IO) (up to 1920x1080 @ 60 Hz)
• 1 x DVI-D (pin header) (up to 1920x1080 @ 60 Hz)
Super I/O: Fintek 81866
Audio: Realtek ALC892 HD Audio codec
• 2 x Audio jacks (line-out, mic-in) on rear IO (colayout with three audio jacks)
• 1 x 4-pin (1x4) SPDIF header
• 1 x 10-pin (2x5) front audio
I/O Interface:
• 2 x RS-232
• 1 x RS-422/485
• 2 x USB 3.0 (rear IO)
• 6 x USB 2.0 (2 x Rear IO, 4x pin header)
• 1 x 6-pin header for KB/MS
• 6 x SATA 6 GB/s (RAID 0, 1, 5, 10 supported)
• 2 x SATA power connector (4P, P=2.54)
SMBus: 1 x 4-pin wafer
TPM: 1 x 20-pin (2x10) header
Expansion:
• 1 x SIM card socket
• 1 x PCIe Mini card slot (support mSATA colay SATA port 4)
• 1 x SD card slot
• 1 x CFAST (bottom side)
iRIS Remote Management Module: 1 x iRIS-2400 slot
Watchdog Timer: Software programmable, support 1~255 sec. system reset
Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
LAN LED: 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED
Infrared Interface:
• 1 x 5-pin header
Fan Connector:
• 1 x 4-pin CPU fan connector
• 1 x 3-pin system fan connector
Power Supply:
• 12 V only DC input
• 1 x External DC jack (4-pin DIN)
• 1 x Internal 4-pin (2x2) power connector
• Support AT/ATX mode
Power Consumption: 12 V@3.45 A
(AMD R-464L 2.3 GHz CPU with 8 GB (2 x 4 GB) 1333 MHz DDR3 memory)
Operating Temperature: 0 ~ +60°C
Operating Humidity: 5 ~ 95%, non-condensing
Dimensions: 170 x 170 mm
Weight: GW:900 g, NW: 450 g

Ordering Information

KINO-DA750-i2-R10 - Mini-ITX SBC supports Socket FS1r2 AMD R-series APU with A75, Triple HDMI, DVI, Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6 Gb/s and Audio, iRIS-2400 and RoHS
