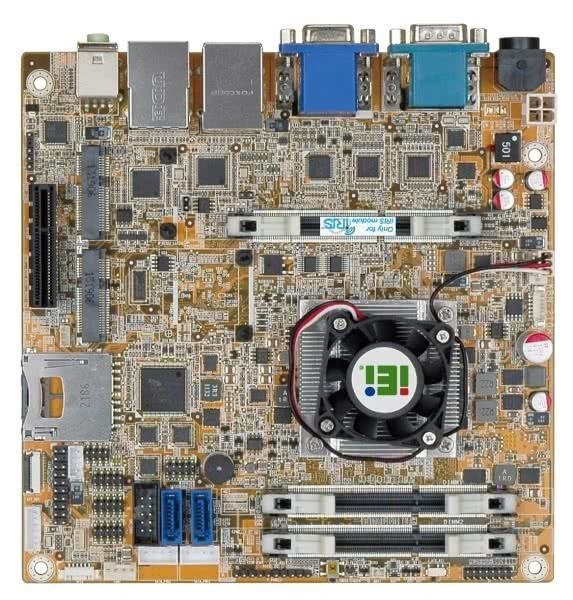

Name: KINO-KBN-i2-4151
Brand: IEI Integration Corp.

Płyta główna Mini-ITX z procesorem AMD quad-core GX-415GA 1.5 GHz (15 W), VGA/2 x HDMI, 2 x PCIe GbE, 4 x RS-232, 1 x RS-422/485, 2 x USB 3.0, 4 x USB 2.0, 2 x SATA-3 i HD audio

Features

Mini-ITX form fator with AMD Embedded G-Series SoC
12 V only single voltage design with AT/ATX support
Dual independent display by VGA and dual HDMI
Support dual PCIe Mini card slot for mSATA, wireless card and DOM
Support IPMI 2.0 with iRIS module
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

SoC: AMD Embedded G-Series GX-415GA on-board SoC
(1.5 GHz, quad-core, 2 MB cache, TDP=15 W with fan solution)
BIOS: AMI UEFI BIOS
Memory: Two 204-pin 1600/1333 MHz dual-channel DDR3 & DDR3L SDRAM unbuffered DIMMs
support up to 16 GB
Graphics Engine: GPU frequency 500 MHz (Radeon HD 8330E)
• Support DX11.1, OpenGL 4.1 and OpenCL1.2
• UVD4.2 decode for H.264, MPEG2/4, VC1, MVC
• VCE 2.0 encode for H.264, VCE
Display Out:
• VGA (up to 2048x1536@60 Hz)
• HDMI (up to 1920x1200@60 Hz)
Ethernet:
• GBE1: Intel I210-AT PCIe controller with NCSI support
• GBE2: Intel I211-AT PCIe controller
Super IO: Fintek F81866
I/O Interfaces:
• 1 x RS-422/485
• 4 x RS-232 (1 on rear I/O, 3 by pin header)
• 1 x SD card
• 2 x SATA 6 Gb/s with SATA power connector
• 2 x USB 3.0 (2 on rear I/O)
• 4 x USB 2.0 (2 on rear I/O, 2 by pin header)
• 1 x mSATA (colay SATA port 2)
• 1 x 6-pin wafer for PS/2 KB/MS
iRIS Remote Management Module: 1 x iRIS-2400 slot
SMBus: 1 x 4-pin (1x4) wafer
Audio: Realtek AL892 HD Audio codec
• 1 x S/PID by 4-pin (1x4) header for digital audio
• 1 x Line-out / Mic-in audio jack on rear IO
Front Panel: 1 x Front panel (Power LED, HDD LED, Speaker, Power Button, Reset Button)
LAN LED: 2 x 2-pin headers for LAN1 Link LED, LAN2 Link LED
Expansion:
• 1 x Half-size PCIe Mini card slot
• 1 x PCIe x4 slot
Digital I/O: 8-bit digital I/O (4-bit input / 4-bit output)
Fan Connector: 1 x 4-pin system fan connector
Watchdog Timer: Software programmable, support 1~255 sec. system reset
Power Supply:
• 12 V only DC input
• 1 x Internal 4-pin (2x2) power connector
• 1 x External DC jack (4-pin DIN)
• Support AT/ATX mode
Power Consumption: +12 V@ 1.45 A
(AMD GX-415GA 1.5 GHz CPU with 1333 MHz 2 GB DDR3 memory)
Operating Temperature: 0 ~ +60°C
Storage Temperature: -20 ~ +85°C
Operating Humidity: 5 ~ 95%, non-condensing
Dimensions: 170 x 170 mm
Weight: GW:600 g/ NW:250 g

Ordering Information

KINO-KBN-i2-4151-R10 - Mini-ITX SBC supports AMD 28 nm quad-core GX-415GA 1.5 GHz (15 W) on-board SoC with VGA/Dual HDMI, Dual GbE, Dual PCIe Mini, USB 3.0, SATA 6 GB/s, iRIS-2400, audio and RoHS
