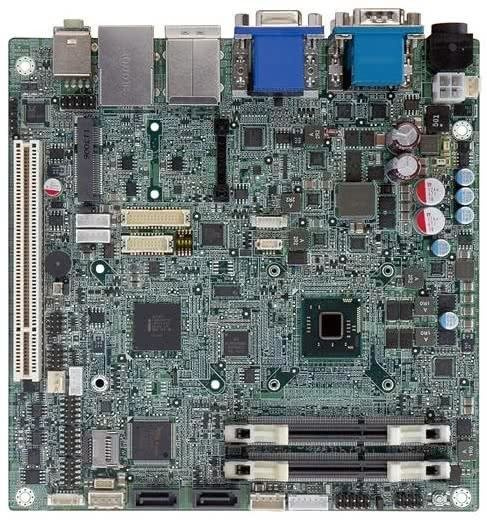

Name: KINO-CV-D25501
Brand: IEI Integration Corp.

Features

Mini-ITX form factor with Intel D2550 dual-core processor supports DDR3/DDR3L (1.35 V) memory
Wide range 9 ~ 28 Vdc input
Flexible VGA, dual LVDS and HDMI with dual-display support
Complete I/O: six USB 2.0, two USB 3.0, two SATA 3Gb/s, six COM and audio.
mSATA SSD capable
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: 1.86 GHz Intel Atom D2550 dual-core processor
Chipset: Intel NM10
BIOS: UEFI BIOS
Memory: 1 x 1066 MHz DDR3/DDR3L (1.35 V) SO-DIMM up to 4 GB
Graphics:
Intel GMA 3650 with 640 MHz graphics core speed
Display Output:
Supports dual LVDS, VGA and HDMI for dual independent display
1 x VGA (up to 2048 x 1536 @75Hz)
1 x HDMI (up to 1920 x 1200 @60Hz)
LVDS1 integrated in the D2550
Single-channel 24-bit LVDS by D2550, resolution support up to 1440x900
LVDS2 supports 24-bit dual-channel by CH7511 DP to LVDS converter
Ethernet: Dual GbE Realtek RTL8111E controller with ASF 2.0 support
I/O Interfaces:
5 x RS-232
1 x RS-422/485
1 x 6-pin KB/MS
2 x SATA 3 Gb/s with 5 V/12 V power connector
6 x USB 2.0
2 x USB 3.0
1 x microSD slot (bootable)
Super IO: Fintek F81866
Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
Expansions:
1 x PCIe Mini card slot (compatible with mSATA SSD storage)
1 x PCI slot
Audio: Realtek ALC662 HD audio codec
Watchdog Timer: Software programmable supports 1~255 sec. system reset by Super I/O
Power Supply:
Maximum input voltage range: 9 ~ 28 Vdc
Recommended operating input voltage range: 12 ~ 24 Vdc
1 x External 4-pin DIN DC jack
1 x Internal 4-pin (2x2) power connector
Fan Connector:
1 x 3-pin CPU fan connector
1 x 3-pin system fan connector
SMBus: 1 x 4-pin connector
Power Consumption: 12 V@2.8 A
(1.86 GHz Intel D2550 CPU with DDR3 1333 MHz 4 GB DIMM)
Operating Temperature:
-20 ~ +60°C with free air,
-20 ~ +70°C with force air
Operating Humidity: 5 ~ 95%, non-condensing
Weight: GW: 600 g/NW: 250 g

Ordering Information

KINO-CV-D25501-R10 - Mini-ITX SBC with Intel Atom D2550 1.86 GHz, DDR3, VGA/HDMI/dual LVDS, dual GbE, USB 3.0, 9 ~ 28 Vdc, SATA 3 Gb/s, Audio, RoHS
