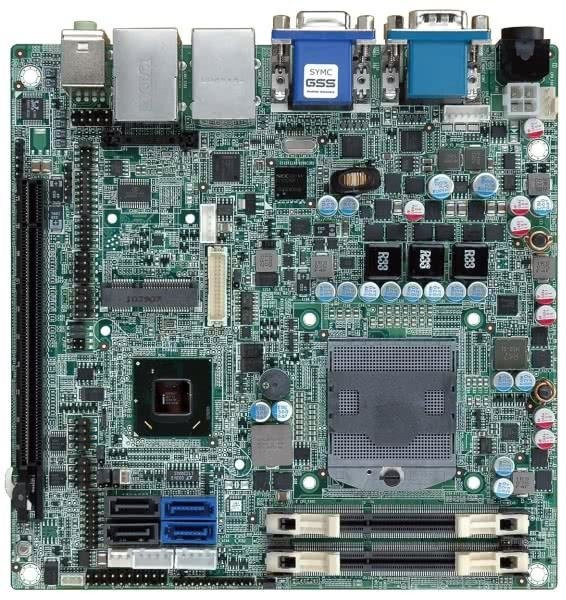

Name: KINO-QM670
Brand: IEI Integration Corp.

Features

Mini-ITX SBC with Socket G2 for Intel Core i7/i5/i3 processor
DDR3 1333/1066 MHz dual-channel SDRAM supported up to 8GB
HDMI 1.4 compliant
3D micro-architecture enhancements supports for DX 10.1 and OGL 3.0
Rich media acceleration for hardware decoding and encoding acceleration
Intel GbE Lan with IntelAMT 7.0 supported
High speed I/O interface for PCIe Gen2 add-on card, USB 3.0 and SATA 6Gb/s supported

Specifications

CPU: Socket G2 for Intel Core i7/i5/i3 processor
PCH: Intel QM67
Memory: Two 204-pin 1333/1066 DDR3 dual-channel SO-DIMMs supported (system max. 8 GB)
BIOS: UEFI BIOS
Ethernet:
Intel 82583V PCIe controller
Intel 82579 PHY with Intel iAMT 7.0 supported
Graphic Engine:
Support for DX10.1 and OpenGL3.0
Full MPEG2, VC1, AVC Decode
Display Output:
VGA integrated in Intel QM67
18/24-bit dual-channel LVDS support
Dual HDMI output support up to 1080p
Super I/O: Fintek F81865
Embedded Controller: ITE IT8518
Audio: Realtek ALC888 HD codec
I/O interface:
2 x RS-232
1 x RS-422/485
2 x USB 3.0
6 x USB 2.0
2 x SATA 6 Gb/s with RAID 0/1/5/10 support
2 x SATA 3 Gb/s
2 x SATA power connector
1 x 6-pin header for KB/MS
SM bus: 1 x 4-pin wafer
TPM: 2 x 10-pin pin heder
Expansion:
1 x Mini PCIe card slot
1 x PCIe x16
Watchdog Timer: Software programmable support 1~255 sec. system reset
Digital I/O: 8-bit digital I/O (4-bit input, 4-bit output)
Infrared Interface: 1 x 5-pin pin header
Fan connector:
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
Power Supply: Single voltage 12 Vdc input
1 x External DIN 4-pin DC jack
1 x Internal 4-pin (2x2) power connector
Support AT/ATX mode
Power Consumption: 12 V@6.5 A
(2.2 GHz Intel Core i7 CPU with DDR3 1333 MHz 4 GB*2 DIMM)
Operating Temperature: -10 ~ +60°C
Operating Humidity: 5 ~ 95%, non-condensing
Dimensions: 170 x 170 mm
Weight: GW: 900 g / NW: 450 g

Ordering Information

KINO-QM670-R20 - Mini-ITX SBC with Socket G2 for Intel mobile Core i7/ i5/ i3 CPU, VGA/Dual HDMI/LVDS, Dual PCIe GbE, USB 3.0, PCIe mini, SATA 6Gb/s and audio
