Features
- Intel Atom processor N270 1.6 GHz with ultra low voltage fan-less support
- DDR2 400/533 SO-DIMM memory support up to 2 GB
- Dual display support by VGA + DVI-D, LVDS + VGA, LVDS + DVI-D
- Support PCIe Mini card, PCI slot for expansion
- Support six USB 2.0, two SATA, four COM
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel Atom processor N270 1.6 GHz with a 533 MHz FSB
- System Chipset: Intel 945GSE + ICH7M
- BIOS: AMI BIOS
- Memory: One 200-pin 400/533 DDR2 SDRAM SO-DIMM supported (system max. 2 GB)
- Ethernet: Dual Realtek PCIe 8111CP GbE chipsets
- I/O Interface:
3 x RS-232
1 x RS-232/422/485
6 x USB 2.0
2 x SATA
1 x CF Type II
1 x IDE
2 x PS/2 for KB/MS - Graphic: Intel Graphics Media Accelerator 950
- Display Output:
VGA integrated in Intel 945GSE
Support HDTV resolution up to 1080i by component interface
18-bit dual channel LVDS by Intel 945GSE
DVI-D support by Silcon Image Sil1362 - Expansion:
1 x PCI,
1 x PCIe Mini card - Digital I/O: 8-bit digital I/O, 4-bit input/ 4-bit output
- Infrared Interface by pin header
- Super IO: ITE IT8718F
- Audio: Realtek ALC655 AC'97 codec
- Watchdog Timer: Software programmable support 1~255 sec. system reset
- Power Supply: AT/ATX power support
- Power Consumption: 2.89 A@5 V, 0.04 A@12 V
(Intel Atom N270 with 1 GB DDR2) - Temperature: Operation: -20 ~ +70°C
- Humidity: Operation: 5% ~95% non-condensing
- Dimensions: 170 x 170 mm
- Weight: GW: 1100 g / NW: 370 g

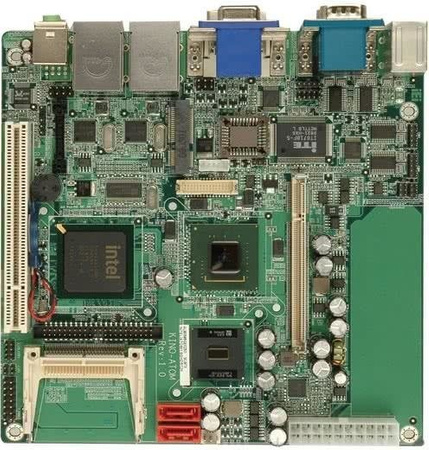

- KINO-945GSE-N270W-R12 - Mini-ITX SBC with Intel Atom N270 1.6 G, VGA/DVI/TV, Dual PCIe GbE, USB 2.0, SATA and Audio, -20 ~ +70°C
- CB-USB02-RS - Dual USB cable
- HDTVCABLESET-01 - HDTV cable set with S-Video, composite and component interfaces
- 32102-000100-200-RS - SATA power cable
- 32200-000009-RS - 44-pin 2.5" IDE cable
- 32200-833600-RS - RS-422/485 cable
