Features

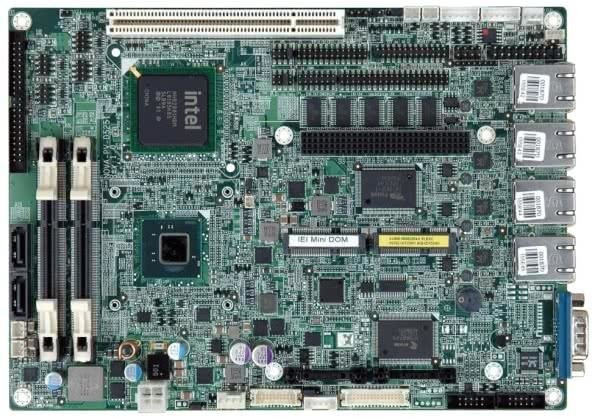

- 5.25" SBC supports Intel Atom D525 processor
- DDR3 800/1066 MHz supports up to 4 GB
- VGA/ 18-bit single-channel/ 24-bit dual-channel LVDS for dual independent display support
- Dual PCIe Ethernet, two SATA 3 Gb/s, and six RS-232 serial port connectors
- TPM V1.2 hardware security function support by TPM module
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel dual-core Atom D525 Processor 1.8 GHz/1 MB L2 cache
- System Chipset: Intel ICH8M
- BIOS: UEFI BIOS
- Memory: Two 204-pin 800 MHz DDR3 SDRAM SO-DIMMs supported
(system max. 4GB) - Ethernet: Two PCIe Realtek RTL8111E GbE controller,
LAN1 with ASF2.0 support - Graphic: GMA 3150
Graphic core speed 400 MHz - I/O Interface:
5 x RS-232
1 x RS-232/422/485 with Auto Flow control
8 x USB 2.0
2 x SATA 3 Gb/s
1 x LPT
1 x IDE
1 x CF Type II
1 x 6-pin header for KB/MS - Expansion:
1 x PCI-104
2 x PCIe Mini card slot, one support IEI mini DOM
1 x PCI - Digital I/O: 16-bit digital I/O, 8-bit input / 8-bit output
- Super IO: Fintek F81865
- Display Interface:
Analog CRT up to 2048x1536
Support for CRT hotplug
18-bit single-channel LVDS, resolution support up to WXGA 1366x768 or XGA 1024x768
24-bit dual-channel LVDS by Novatek 68667UFG, resolution support up to 1920x1080 - Audio: Realtek ALC 888 HD codec
- Watchdog Timer: Software programmable support 1~255 sec. system reset
- TPM: 2 x 10-pin pinheader
- SMBus: 1 x 4-pin wafer
- DC connector:
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
2pcs 1 x 2-pin wafer for SATA power 5 V connector - Power Supply: 12 V only
- Power Consumption: 12 V@1.46 A
(Intel Atom D525 1.8 GHz with DDR3 1 GB*2) - Temperature:
-20 ~ +60°C with free air,
-20 ~ +70°C with force air - Humidity: Operation: 5 ~ 95%, non-condensing
- Dimensions: 203 x 146 mm
- Weight: GW: 1000 g / NW: 400 g
- NOVA-PV-D5251-G2L2-R10 - 5.25" SBC, Intel dual-core Atom D525 1.8 GHz, DDR3,18+48 bits LVDS/ VGA, Dual PCIe Mini, Dual PCIe GbE,USB 2.0, SATA 3 Gb/s, audio, RoHS
- 32200-000009-RS - 44 pin 2.5" IDE cable
- 32200-015100-RS - LPT cable
- 32205-000300-100-RS - RS-232/422/485 cable
- 19FTS00032100-000001-RS - CPU fan
- TPM-IN01-R11 - 20-Pin Infineon TPM module, software management tool, firmware V3.17
