Features
- EPIC form factor with Intel D2550 dual-core proccessor supporting DDR3/DDR3L (1.35 V) memory
- Wide range 9 ~ 28 Vdc input design
- Flexible VGA, dual LVDS and HDMI with dual-display support
- Supports PC/104-Plus and PCIe Mini card slot compatible with mSATA SSD storage
- Complete I/O with six USB, two SATA 3 Gb/s, four COM and audio
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel dual core Atom D2550 1.86 GHz processor
- Chipset: Intel NM10
- BIOS: UEFI BIOS
- Memory: 1 x 1066 MHz DDR3 SO-DIMM supporting up to 4 GB
- Graphics: GMA 3650 at 640 MHz graphics core speed
- Display Output:
Dual display supported
1 x VGA (up to 1920 x 1200 @60 Hz)
1 x HDMI (up to 1920 x 1200 @60 Hz)
LVDS1 integrated in the D2550
Single-channel 24-bit LVDS by D2550, resolution support up to 1440x900 @60 Hz
LVDS2 supports 24-bit dual-channel by CH7511 DP to LVDS converter,
resolution support up to 1920x1200 - Ethernet: Dual GbE by Realtek RTL8111E controllers
- I/O Interface:
3 x RS-232
1 x RS-422/485
4 x USB 2.0
1 x microSD (Only for boot up to DOS)
2 x USB 3.0
1 x 6-pin wafer for PS/2 KB/MS
2 x SATA 3 Gb/s with 5 V power connector (SATA1 and mSATA shares SATA signal) - Audio: Realtek ALC662 HD audio codec
- Expansions:
1 x PCIe Mini card (compatible with mSATA SSD device) (SATA1 and mSATA shares SATA signal)
1 x PC/104 slot (ISA)
1 x PCI/104 slot (PCI) - SMBus: 1 x 4-pin wafer connector
- TPM: 1 x 20-pin LPC pin header
- Watchdog Timer: Software programmable supports 1~255 sec. system reset
- Programmable GPIO: 8-bit GPIO
- Fan Connector:
1 x 3-pin CPU fan connector
1 x 3-pin system fan connector - Power supply:
Maximum input voltage range: 9 ~ 28 V
Recommended operating input voltage range: 12 ~ 24 V
One internal 4-pin (2x2) power connector - Power Consumption:
12 V@2.1 A (Intel D2550 1.86 GHz CPU with 1333 MHz 2 GB DDR3 memory)
- Operating Temperature:
-20 ~ +60°C with free air,
-20 ~ +70°C with force air - Operating Humidity: 5 ~ 95%, non-condensing
- Weight: GW: 670 g/NW: 350 g

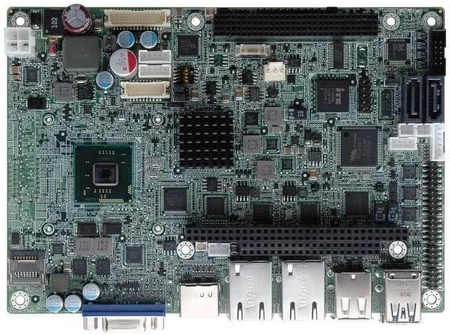

- NANO-CV-D25501-R10 - EPIC SBC with Intel Atom D2550 1.86 GHz, DDR3, VGA/HDMI/dual LVDS, dual GbE, USB 3.0, mSATA, SATA 3 Gb/s, Audio, RoHS
- 32205-002700-100-RS - RS-232 cable
- 32205-003800-100-RS - RS-422/485 cable, 200 mm
