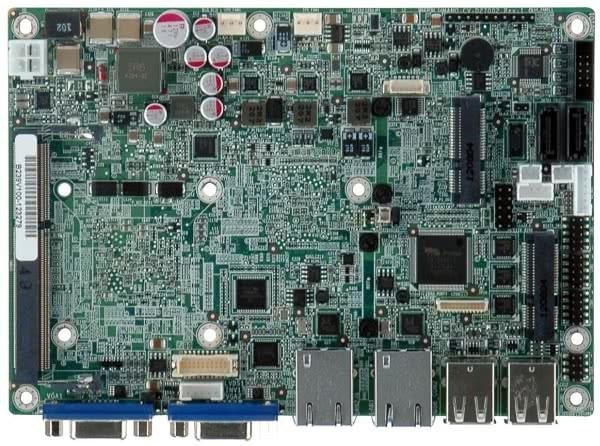

NANO-CV-N26002

  • Komputer jednopłytkowy EPIC z procesorem Intel Dual-Core Atom N2600 1,6 GHz, 2 x VGA/1 x LVDS, 2 x GbE, 3 x RS-232, 1 x RS-422/485, 6 x USB 2.0, 2 x SATA-2 i HD-audio; temp. pracy -20 ~ +75°C
  • NANO-CV-N26002
Features
  • EPIC form fator with Intel Atom dual core N2600 1.6 GHz proccessor supporting DDR3 memory
  • Dual display support by dual VGA and 18-bit single channel LVDS
  • 800 MHz DDR3 SO-DIMM supported up to 2 GB
  • Thermal design for easy assembly by enclosure heatsink
  • Wide power voltage range by 9 ~ 28 V support
  • IEI One Key Recovery solution allows you to create rapid OS backup and recovery
Specifications
  • CPU: Intel dual core Atom N2600 1.6 GHz processor
  • Chipset: Intel NM10
  • BIOS: UEFI BIOS
  • Memory: 1 x 800 MHz DDR3 SO-DIMM supporting up to 2 GB
  • Graphics Engine: GMA 3600 at 400 MHz graphics core speed
  • Display Output:
    1st VGA integrated in the CPU (up to 1920 x 1200 @60 Hz)
    2nd VGA driver via the NXP PTN3392 (up to 1920 x 1200 @60 Hz)
    LVDS1 integrated in the CPU
    Single-channel 18-bit LVDS, resolution support up to 1366x768 @ 60 Hz
  • Ethernet: Dual PCIe LAN controller by Realtek RTL8111E with ASF 2.0 support
  • Super I/O: Fintek F81866
  • I/O interface:
    3 x RS-232
    1 x RS-422/485
    1 x 6-pin wafer for PS/2 KB/MS
    6 x USB 2.0 (4 on rear, 2 by pin header)
    2 x SATA 3 Gb/s with SATA 5 V power connector (SATA1 and mSATA shares SATA signal)
  • Audio: Realtek ALC662 HD codec (Line-in, Line-out, Mic)
  • Expansions:
    1 x full-size PCIe Mini card slot with mSATA support (SATA1 and mSATA shares SATA signal)
    1 x half-size PCIe Mini card slot
  • Watchdog Timer: Software programmable supports 1~255 sec. system reset
  • Digital I/O: 8-bit programmable I/O
  • Fan Connector:
    1 x 4-pin CPU fan connector
    1 x 3-pin system fan connector
  • Power supply: 9 ~ 28 V, AT/ATX support
  • Power Consumption:
    12 V@1.23 A (Intel dual core N2600 CPU with 1333 MHz 2 GB DDR3 memory)
  • Operating Temperature:
    -20 ~ +70°C with free air,
    -20 ~ +75°C with force air
  • Operating Humidity: 5 ~ 95%, non-condensing
  • Dimensions: 115 x 165 mm
  • Weight: GW: 850 g/NW: 350 g
Ordering Information
  • NANO-CV-N26002-R10 - EPIC SBC with Intel Atom N2600 1.6 GHz, DDR3, dual VGA/LVDS, dual GbE, USB 2.0, dual PCIe Mini, SATA 3 Gb/s, mSATA and Audio
Optional Accessories
  • 32000-070301-RS - Dual-port USB cable

  • 32205-002700-100-RS - RS-232 cable

  • 32205-003800-100-RS - RS-422/485 cable, 200 mm

  • 32000-023800-RS - PS/2 KB/MS Y cable
