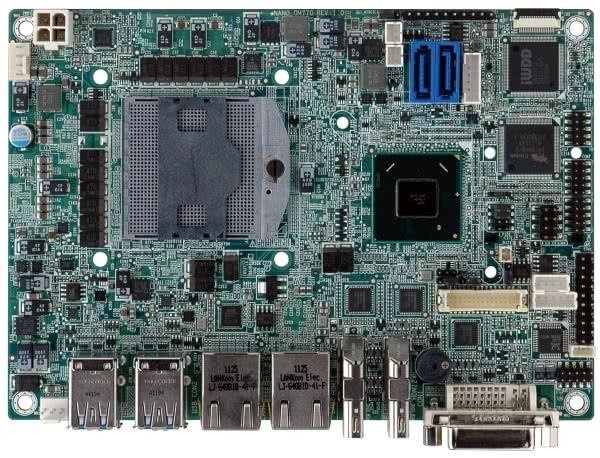

Name: NANO-QM770
Brand: IEI Integration Corp.

Features

EPIC SBC with Socket G2 for Intel 22 nm mobile Ivy Bridge processor
Three independent display support with dual HDMI+DVI/dual HDMI+LVDS (HDMI V1.3a compliant)
1066/1333/1600 MHz DDR3 SDRAM supported up to 8 GB
Supports 3 COM, 4 x USB 3.0, 2 x SATA 6 Gb/s and audio
Intel GbE LAN with Intel AMT 8.0 supported
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: Socket G2 for Intel 3rd generation 22 nm mobile processor
PCH: Intel QM77
BIOS: UEFI BIOS
Memory: One 204-pin 1066/1333/1600 DDR3 SO-DIMM supported
(system max. 8 GB)
Graphics:
Gen 7 with 12 execution units
DirectX 11, OpenGL 3.1, OpenCL 1.1
Display Output:
Analog CRT and DVI by DVI-I connector (up to 2048 x 1536 @75 Hz)
18/24-bit dual channel LVDS (up to 1920 x 1200 @60Hz)
Dual HDMI supports resolution up to 1080p (up to 1920 x 1200 @60Hz)
LAN:
Intel 82583V PCIe controller
Intel 82579 PHY with Intel AMT 8.0 supported
Super I/O: Fintek F81866
I/O interface:
2 x SATA 6 Gb/s with 5V SATA power connector
2 x USB 2.0
4 x USB 3.0
2 x RS-232
1 x RS-422/485
1 x 6-pin header for KB/MS
TPM: 2 x 10-pin LPC pin header for TPM
Audio: Realtek ALC662 HD codec
Expansions:
1 x PCIe Mini card slot (compatible with mSATA device)
Watchdog Timer: Software programmable supports 1~255 sec. system reset
Programmable I/O: 8-bit digital I/O
Fan Connector:
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
Power supply: 12 V only, AT/ATX support,
Power Consumption:
12 V@4.89 A (Intel 1.8 GHz CPU with 1333 MHz DDR3 4 GB memory)
Operating Temperature: -10 ~ +60°C
Operating Humidity: 5 ~ 95%, non-condensing
Dimensions: 115 x 165 mm
Weight: GW: 850 g/NW: 350 g

Ordering Information

NANO-QM770-R10 - EPIC SBC supports Socket G2 for Intel 22 nm mobile CPU, DVI-I/dual HDMI/LVDS, dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6 Gb/s and Audio
