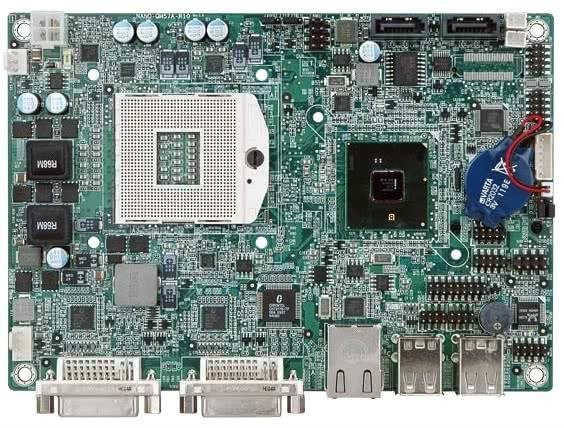

Name: NANO-QM57A
Brand: IEI Integration Corp.

Features

EPIC SBC support Socket G1 Intel Core i7/i5/i3 and Celeronl mobile processor
Dual independent display supported by DVI+DVI or DVI+VGA
One DDR3 800/1066 Mhz SO-DIMM slot supports up to 4GB
Support dual SATA 3Gb/s with RAID 1,0 function, two serial ports and eight USB 2.0 ports
One Intel 82577LM GbE PHY with Intel AMT 6.0 support. iEZman tool is bundled for remote control under Windows environment
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: Socket G1 for Intel mobile Core i7/ i5/ i3 and Celeron processor (Socket 988)
PCH: Intel QM57
BIOS: UEFI BIOS
Memory: One 204-pin 800/1066 MHz DDR3 SDRAM SO-DIMM up to 4 GB
Graphic: Gen 5.75 with 12 Execution Units DirectX* 10, OpenGL* 2.1
Support MPEG2, WMV9/VC-1, AVC and Hardware acceleration
Display Output:
Support dual DVI display: one DVI-I (DVI-D+VGA) and one DVI-D
Ethernet Chipset:
One Intel 82577LM PCIe GbE PHY with Intel AMT 6.0 support (with iAMT 6.0)
Super I/O: Fintek F81801U
I/O interface:
8 x USB 2.0
2 x RS-232
2 x SATA 3 Gb/s with RAID 0, 1 support
1 x 6-pin pin header for KB/MS
Audio: Realtek ALC888 HD codec
Expansion:
1 x Mini PCIe card slot (PCIe + USB + SATA signal) support IEI mini DOM
Watchdog Timer: Software programmable support 1~255 sec. system reset
Fan Connector:
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector
Power Supply: 12 V only, AT/ATX support by jumper
Power Consumption: 12 V@4.66 A
(Intel Core i7 620M 2.66 G, DDR3 2 GB/1333 Mhz)
Temperature: Operation: -10 ~ +60°C
Humidity: Operation: 5% ~ 95%, non-condensing
Dimensions: 165mm x 115mm
Weight: GW: 850 g / NW: 350 g

Ordering Information

NANO-QM57A-R10 - EPIC SBC supports Socket G for Intel Core i7/i5/i3 and Celeron mobile CPU, Dual DVI, PCIe GbE, USB 2.0, Mini PCIe, SATA 3 Gb/s and Audio, RoHS
