Features
- Intel Atom processor N270 1.6 GHz CPU for ultra low voltage fan-less support
- Single 12 V power input, 5 V output for SATA device
- Support four COM, six USB, two SATA
- Support PCIe Mini Card, PCI-104 for expansion
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel Atom Processor N270 1.6GHz with 533 MHz FSB
- System Chipset: Intel 945GSE + Intel 82801GBM / ICH7M
- BIOS: AMI BIOS
- System Memory: One 200-pin 533 MHz DDR2 SDRAM SODIMM supported
(system max. 2GB) - Ethernet: Dual PCIe Realtek 8111CP GbE chipset
- I/O interface:
6 x USB 2.0
2 x SATA
1 x IDE
3 x RS-232
1 x RS-232/422/485
1 x PS/2 for KB/MS
1 x LPT
1 x CF Type II - Infrared Interface: 1 x Infrared interface by pin header
- Expansions:
1 x PCI-104 (PCI Bus)
1 x PCIe mini card - Super IO: ITE IT8718
- Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output by supper I/O
- Audio:
5.1 channel audio kit with Realtek ALC655 AC'97 codec
7.1 channel HD audio kit with Realtek ALC888 codec supports dual audio streams - Display Interface:
Intel Graphics Media Accelerator 950
VGA integrated in Intel 945GSE
support HDTV resolution up to 1080i by component interface
18 bit dual-channel LVDS integrated in Intel 945GSE
- Watchdog Timer: software programmable 1-255 sec. by super I/O
- Power Supply: 12 V only,AT/ATX support
- Power Consumption: 12 V@1.53 A (Intel Atom N270 with 2 GB DDR2)
- Temperature: Operation: 0 ~ +60°C
- Humidity: operation: 5% ~95 non-condensing
- Dimensions: 165 x 115 mm
- Weight: GW: 700 g / NW: 350 g

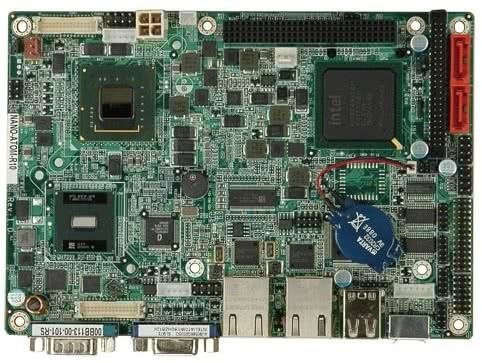

- NANO-945GSE-N270-R20 - EPIC SBC with Intel Atom Processor N270 1.6 GHz, VGA/18 bit dual-channel LVDS, Dual GbE, CFII, USB, SATA
- 32000-044300-RS - Dual port USB cable
- 32200-015100-RS - LPT cable
- 32200-026500-RS - RS-232/422/485 cable
- 32100-043403-RS - ATX power cable
- 32000-083701-RS - HDTV out cable
- 32200-000009-RS - 44-pin 2.5" IDE cable
- 32200-008800-RS - 44-pin to 2.5"/3.5" IDE cable
- 32102-000100-200-RS - SATA power cable
- 32801-000201-100-RS - SATA 5 V power output cable kit for NANO series
- AC-KIT08R-R10 - 5.1 channel AC'97 audio kit with Realtek ALC655 codec
- AC-KIT-888HD-R10 - 7.1 channel HD audio kit with Realtek ALC888 codec support dual audio streams
