Features
- Intel Atom N270 1.6 GHz CPU with ultra low voltage fan-less support
- Single 12 V power input, 5 V output for SATA device
- Dual display support by VGA+LVDS, VGA+TTL
- Support four COM, six USB, two SATA and CF Type II socket
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- CPU: Intel Atom Processor N270 1.6 GHz with 533 MHz FSB
- System Chipset: Intel 945GSE, Intel 82801GBM/ICH7M
- BIOS: AMI BIOS
- System Memory: One 200-pin 533 MHz DDR2 SDRAM SO-DIMM supported (system max. 2 GB)
- Ethernet: Dual PCIe Realtek 8111CP GbE chipset
- I/O Interface:
6 x USB 2.0
2 x SATA
3 x RS-232
1 x RS-232/422/485 (RS-232, RS-422/485 shared with COM3)
1 x PS/2 for KB/MS
1 x LPT
1 x CF Type II - Infrared Interface: 1 x Infrared Interface by pin header
- Expansions:
1 x PC/104-Plus - Super IO: ITE IT8718
- Digital I/O: 8-bit digital I/O, 4-bit input/4-bit output by super I/O
- Audio: Realtek ALC655 with AC'97 codec
- Display Interface:
Intel Graphics media accelerator 950
VGA integrated in Intel 945GSE
18-bit dual-channel LVDS integrated in Intel 945GSE
24-bit TTL (LVDS to TTL) - Watchdog Timer: Software programmable 1-255 sec. by super I/O
- Power Supply: 12 V only, AT/ATX support
Power Consumption: 12 V@ 1.45 A
(Intel Atom Processor N270 with 1 GB DDR2) - Temperature: Operation: -20 ~ +70°C
- Humidity: Operation: 5% ~95 non-condensing
- Dimensions: 165 x 115 mm
- Weight: GW: 700 g / NW: 350 g

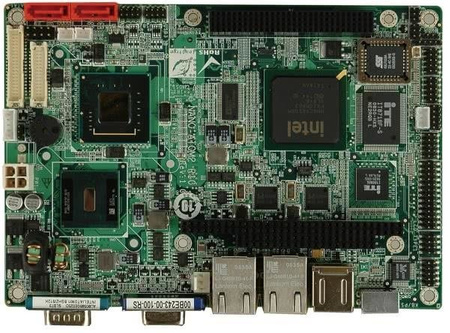

- NANO-945GSE2-N270W-R10 - EPIC SBC with Intel Atom Processor N270 1.6 GHz, VGA/LVDS/TTL, Dual GbE, CFII, USB, SATA and PC/104+ ,-20~70°C
- 32000-070301-RS - Dual port USB cable
- 32200-015100-RS - LPT cable
- 32200-833600-RS - RS-422/485 cable
- 32100-052100-RS - ATX power cable
- 32102-000100-200-RS - SATA power cable
- 32801-000201-100-RS - SATA 5 V power output cable kit for NANO series
