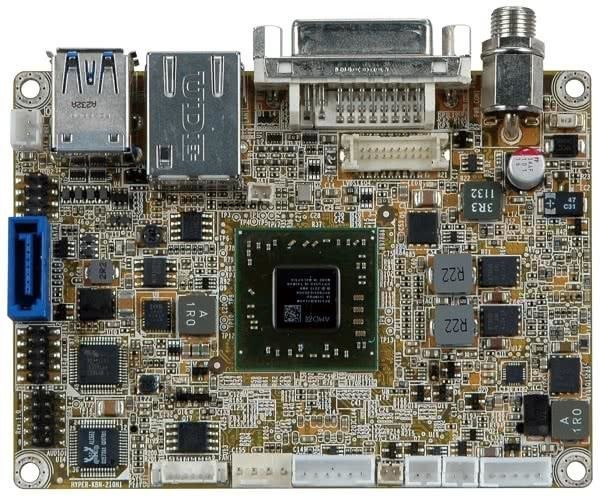

Płyta główna Pico-ITX z procesorem AMD quad-core GX-415GA 1,5 GHz, DVI-I/LVDS, 1 x GbE, 1 x RS-232, 2 x USB 3.0, 2 x USB 2.0, 1 x SATA-3 i HD-audio
Features
Features
- Pico-ITX form fator with AMD Embedded G-Series SoC supports DDR3/DDR3L up to 1600 MHz memory
- 12 V only single voltage design for AT/ATX power by DC power jack
- DVI-I and 18-bit singel channel LVDS support for dual displays
- IEI One Key Recovery solution allows you to create rapid OS backup and recovery
- SoC: AMD Embedded G-Series SoC
GX-415GA on-board SoC (1.5GHz, Quad-core, 2MB cache, TDP=15W with fan solution)
- BIOS: AMI UEFI BIOS
- Memory: One 204-pin 1600/1333 single-channel DDR3/DDR3L SO-DIMM supported
(system max. 8 GB) - Graphics:
• GPU frequency 500 MHz (Radeon HD 8330E)
• Support for DX11.1, OpenGL 4.1 and OpenCL1.2
• UVD4.2 decode for H.264, MPEG2/4, VC1, MVC
• VCE 2.0 encode for H.264, VCE - Display Out:
• DVI-I (DVI-D up to 1920x1200@60Hz, VGA up to 2048x1536@60Hz)
• 18-bit single channel LVDS (up to 1600x900@60Hz) - Ethernet:
GBE1: Realtek RTL8111E with ASF 2.0 support - I/O Interfaces:
• 1 x RS-232
• 1 x SATA 6 Gb/s with 5 V SATA power connector
• 2 x USB 3.0 (on rear I/O)
• 2 x USB 2.0 (by pin header) - Audio:
• Realtek AL662 HD codec
• 1 x Analog audio by 10-pin (2x5) header - Front Panel:
• 1 x 6-pin (1x6) wafer for power LED & HDD LED
• 1 x 2-pin (1x2) wafer for power button
• 1 x 2-pin (1x2) wafer for power reset button - LAN LED:
2 x 2 Pin for LAN1 Link LED, LAN2 Link LED - FAN Connector:
• 1 x 4-pin system fan connector - Watchdog Timer: Software Programmable support 1~255 sec. System reset
- Power Supply:
• 12 V only DC input
• 1 x external DC power jack (ø5.5 mm)
• Support AT/ATX mode - Power Consumption: +12 V@1.45 A
(AMD GX-415GA 1.5 GHz CPU with 1333 MHz 2 GB DDR3 memory) - Operating Temperature: 0 ~ +60°C
- Storage Temperature: -10 ~ +85°C
- Operating Humidity: 5 ~ 95%, non-condensing
- Dimensions (LxW): 100 x 72 mm
- Weight: GW:600 g/ NW:250 g
- HYPER-KBN-4151-R10 - Pico-ITX SBC with AMD 28 nm quad-core GX-415GA 1.5 GHz (15 W) SoC processor, DDR3 DVI-I/LVDS, GbE, SATA 6 Gb/s, USB 3.0, HD Audio and RoHS
- 32000-070301-RS - Dual ports USB cable
- GX-420CA on-board SoC (2.0 GHz, Quad-core, 2 MB cache, TDP=25 W with fan solution), GPU frequency 600 MHz (Radeon HD 8400E)
- GX-217GA on-board SoC (1.65 GHz, Dual-core, 1 MB cache, TDP=15 W with fanless solution), GPU frequency 300 MHz (Radeon HD 8280E)
Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.
