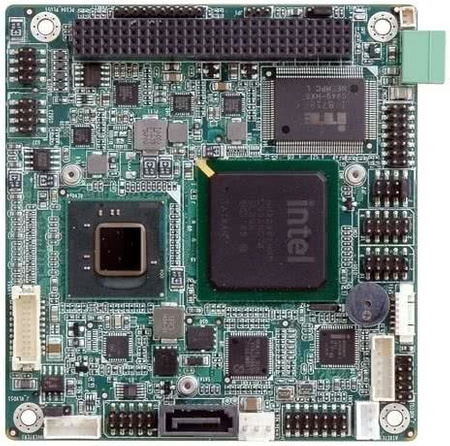

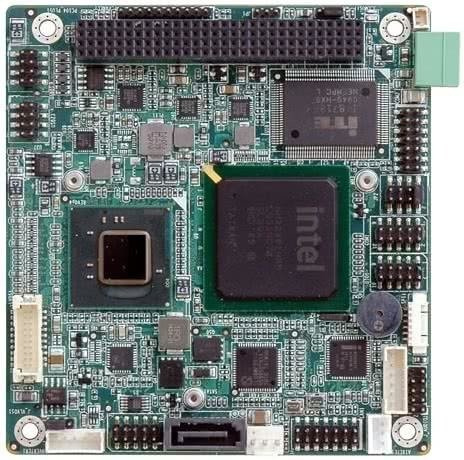

PM-PV-N4551

Features

• Intel Atom N455 processor with DDR3 solution
• Single 5 V power design, 12 V for LCD/fan
• Single channel 18-bit LVDS/ VGA output for display support
• Support two COM, four USB, SATA II and CF type II socket
• IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

• CPU: Intel Atom N455 single-core processor 1.66 GHz / 512 KB L2 cache
• Chipset: Intel ICH8M
• BIOS: UEFI BIOS
• Memory: One 204-pin 800 MHz DDR3 SDRAM SO-DIMM supported (System max. 2 GB)
• Graphic: GMA 3150
  Graphic core speed 200 MHz
• Display interface:
  Analog CRT up to 1400x1050
  Support for CRT hot plug
  Single Channel 18-bit LVDS, resolution support up to XGA 1024x768
• Ethernet: Intel 82567V GbE Ethernet PHY
• I/O Interface:
  4 x USB 2.0
  1 x SATA II
  1 x RS-232
  1 x RS-232/422/485
  1 x KB/MS
  1 x CF card slot
• Digital I/O: 8-bit digital I/O, 4-bit input / 4-bit output
• Expansion:
  1 x PCI-104 Slot
• Audio: 7.1 channel HD audio kit with Realtek ALC883 codec supports dual audio streams
• Watchdog Timer: Software programmable support 1~255 sec. system reset by Super I/O
• Power Supply: 5V power input, AT/ATX support
• Super I/O: ITE IT8718F
• Power Consumption: 5 V@3.31 A, 12 V@0.09 A, 5 Vsb@0.03 A
  (Intel Atom D525 1.8 GHz with DDR3 1 GB)
• Temperature:
  -20°C ~ 70°C with free air,
  -20°C ~ 75°C with force air
• Humidity: Operation: 5% ~ 95% non-condensing
• Dimensions: 96 x 90 mm

Ordering Information

• PM-PV-N4551-R10 - PC/104 SBC with Intel Atom N455 1.66GHz, DDR3, VGA/LVDS, GbE, USB 2.0, SATA II and CFII, RoHS

Optional Accessories

• 32200-000049-RS - RS-232 cable


• 32205-000300-100-RS - RS-232/422/485 cable


• 32000-062800-RS - SATA cable


• 32102-000100-200-RS - SATA power cable


• AC-KIT-883HD-R10 - 7.1 channel HD Audio Kit with Realtek ALC883 support dual audio streams


• CF-PV4010-R10 - CPU Fan (40 x 40 x 10mm)
