Features
- 32-bit CompactPCI, PICMG 2.0 Rev 2.1
- Plug-and-play, IRQ & I/O address automatically assigned by PCI BIOS
- Four asynchronized communications ports with intelligent buffer
- Four RS-422/RS-485 ports
- 1000 Vrms isolation voltage
- Suitable for modems, data display, data collection, telecommunications
- Supports Multiple OS
- Surge protectors
- Rugged DB37 connector
- Only support CompactPCI interface 5V (I/O)
- Serial Communications Controller: 16C550A compatible
- System I/O Mapping:
Assigned by PCI BIOS
Shared IRQ - Port Capability:
4 independent isolation RS-422/RS-485 ports (switch selectable)
Max. 8 cards per system (32 ports max.) - Baud Rate: Each port can be configured to 50 to 115,200 bps
- Isolation Voltage: 1000 Vrms
- RS-485 ports support auto-direction flow control
- Supports rear I/O
- Connector: DB37 female connector
- Operating Temperature: 0 ~ +60˚C
- Storage Temperature: -20 ~ +70˚C
- Humidity: 5 ~ 95%, non-condensed
- OS Information
- Windows XP/XP Embedded
- Linux

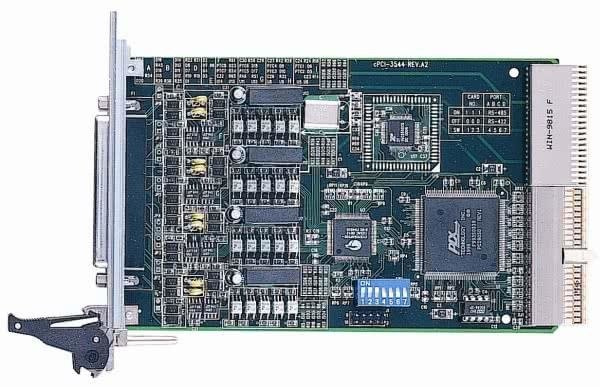

- cPCI-3544R - Isolated 4-port RS-422/RS-485 serial communications module with rear I/O support
- C409M - DB37 to four DB9 male cable
- C425M - DB37 to four DB25 male cable
