Features
- PXI specifications Rev. 2.2 compliant
- 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R3.0)
- PICMG 2.1 R2.0 CompactPCI Hot Swap specifications compliant
- 16-CH SPDT (1 Form C) non-latching relays
- Switching capacity:
3 A switching, 3 A carrying
220 Vdc, 250 Vac - 125 operations per second for full settling
- Onboard 1 k-sample scan list for deterministic scanning
- Handshaking signals for external instruments synchronization
- Design for safety-critical applications
- Hardware emergency shutdown with programmable relay safety status
- Watchdog timer from 1 ms to 420 s with programmable relay safety status
- 8 auxiliary 3.3 V/TTL digital inputs/outputs with 5 V tolerance
- Multiple modules synchronization through PXI trigger bus and star trigger
- Fully software programmable
- Relay Characteristics
- Number of channels: 16
- Relay type: SPDT (1 Form C), non-latching
- Switching capacity:
Max. switching current: 3 A
Max. switching voltage: 220 Vdc, 250 Vac
Max. switching power: 50 VA, 60 W
Max. carrying current: 3 A - Contact resistance: 150 mΩ max.
- Relay set/reset time:
Operate time: 5 ms max.
Release time: 5 ms max.
Bounce time: 3 ms max. - Expected life:
Mechanical life: 10^8 operations min.
Electrical life : 10^5 operations min.
(0.4 A @ 125 VAC, resistive load) - Data transfer: Programmed I/O
- Auxiliary Digital I/O
- Numbers of channel: 8 inputs/outputs
- Compatibility: 3.3 V/TTL (5 V tolerant)
- Handshaking Signals
- Programmable polarity
- Logic level: 3.3 V/TTL (5 V tolerant)
- TRG_IN source: AUX1, PXI trigger bus, PXI star trigger input
- S_ADV destination: AUX0, PXI trigger bus, PXI star trigger outputs (in the star trigger slot)
- Safety Functions
- Emergency shutdown
Logic level: 3.3 V/TTL (5 V tolerant)
Active: logic low - Watchdog timer
Base clock available: 10 MHz, fixed
Counter width: 32-bit - General
- I/O Connector: 62-pin D-sub male
- Operating temperature: 0˚C to 55˚C
- Storage temperature: -20˚C to 70˚C
- Relative humidity: 5% to 85% non-condensing
- Power requirements: (when all relays are ON) + 5 V 700 mA, +3.3 V 400 mA
- Dimensions (not including connectors): 160 mm x 100 mm
- Certifications
- EMC/EMI: CE, FCC Class A
- Operating Systems
- Windows Vista/XP/2000/2003
- Recommended Software
- VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- ADL-SWITCH for Windows

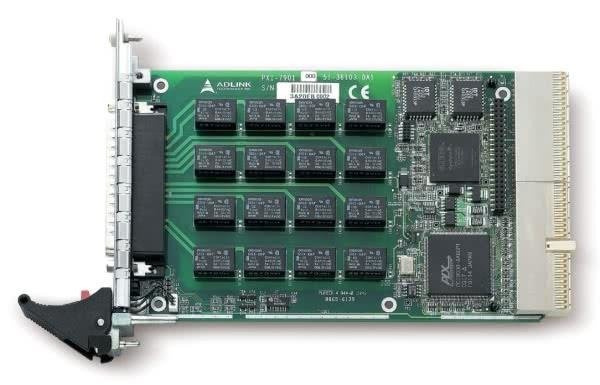

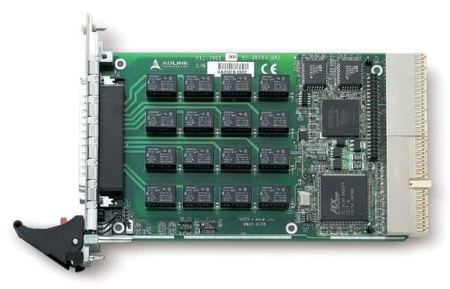

- PXI-7901 - 16-CH General-Purpose SPDT Relay Module
- Terminal Boards
- TB-6201-01 - General-Purpose Switch Terminal Board with one 62-Pin D-Sub Female Connector
- Cable
- ACL-10262 - 62-pin D-Sub M/F cable
