Features
- 3U Eurocard form factor, CompactPCI compliant PICMG 2.0 R2.1
- 16-bit D/A resolution
- Effective 15-bit resolution current transducers
- 8-CH voltage outputs
- 8-CH current outputs
- Bipolar analog output range
- 4-CH TTL digital inputs and 4-CH TTL digital outputs
- Voltage Output
- Number of channels: 8 voltage outputs
- Resolution: 16 bits
- Monotonicity: 15 bits typical
- Output ranges: ±10 V
- Slew rate:10 V/μs typical
- Settling time: 130 μs typical (20 V step)
- Gain Error: ±0.2% maximum
- DNL: ±0.65 LSB typical
- Output driving capacity: ±5 mA maximum
- Output initial status: 0 V
- Data transfer: programmed I/O
- Current Output
- Number of channels: 8 current outputs
- Resolution: 15 bits typical
- Monotonicity: 14 bits typical
- Output ranges: (Software programmable): 0-20 mA, 4-20 mA, 5-25 mA
- Slew rate: 1.3 mA/μs typical
- Settling time: 17 μs typical (20 mA step)
- Span Error: ±0.3% typical
- Output Initial Status: 4 mA (after RESET or POWER-ON)
- Data transfer: programmed I/O
- Digital I/O
- Number of channels: 4 inputs and 4 outputs
- Compatibility: 5 V/TTL
- Data transfers: programmed I/O
- General
- I/O connector: One 37-pin D-sub female
- Operating temperature: 0˚C to 50˚C
- Storage temperature: -20˚C to 80˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirements: +5 V 600 mA typical, +12V 380 mA typical
- Dimensions (not including connectors): 160 mm x 100 mm
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Windows CE (call for availability)
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQ-LVIEW PnP for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

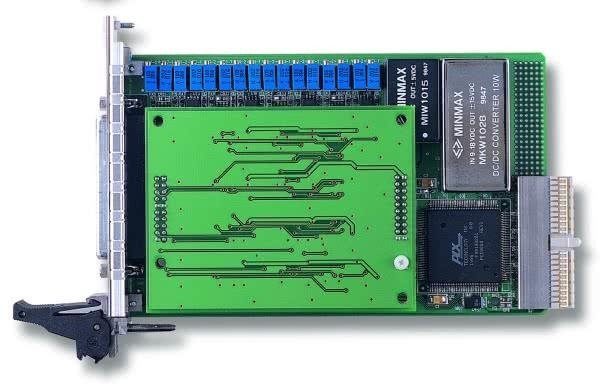

- cPCI-6208A - 8-CH 16-Bit Voltage and Current Output Module
- Terminal Boards
- DIN-37D-01 - Terminal Board with One 37-pin D-sub Connector and DIN-Rail Mounting
- ACLD-9137-01 - General-Purpose Terminal Board with One 37-pin D-sub Male Connector
- ACLD-9137F-01 - General-Purpose Terminal Board with One 37-pin D-sub female Connector.
- Cables
- ACL-10137-1MM - 37-Pin D-Sub M/M cable, 1M (DIN-37D-01, ACLD-9137F-01)
- ACL-10137-1MF - 37-Pin D-Sub M/F cable, 1M (ACLD-9137-01)
