Features
- 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1)
- 32-CH 5 V/TTL digital inputs/outputs
- 20 MHz (80 MB/s) maximum transfer rate
- 8, 16, or 32-bit transfers
- 4 auxiliary DI & 4 auxiliary DO
- Onboard 64 kB FIFO
- Onboard programmable timer pacer clock
- Timed digital input sampling controlled by internal timer or external clock
- Independent trigger signals to start data acquisition and pattern generation
- Scatter-gather DMA
- Supports handshaking digital I/O transfer mode
- Repeated digital pattern generation from FIFO
- Active terminators for high-speed and long distance data transfer
- Digital I/O
- Numbers of channel (Software configurable)
16 DI & 16 DO
32 DI
32 DO - Compatibility: 5 V/TTL
- Digital logic levels
Input high voltage: 2-5.25 V
Input low voltage: 0-0.8 V
Output high voltage: 2.7 V minimum
Output low voltage: 0.5 V maximum - Input load
- Terminator OFF
Input high current: 1 mA
Input low current: 20 mA - Terminator ON
Termination resistor: 111 Ω
Termination voltage: 2.9 V
Input high current: 1 mA
Input low current: 22.4 mA - Output driving capacity
Source current: 8 mA
Sink current: 48 mA - Transfer characteristics
- Data transfers: Bus-mastering DMA with Scatter/Gather
- Data width: 32/16/8 bits (programmable)
- Data transfer count
- 2 M double words (8 MB) for non-chaining mode DMA
- No limitation for chaining mode (scatter/gather) DMA
- Max transfer rate
- DO: 80 MBytes/s, 32-bit output @ 20 MHz
- DI: 80 MBytes/s, 32-bit input @ 20 MHz
- Trigger
- DI_TRG for digital inputs,
- DO_TRG for digital outputs
- Compatibility: 5 V/TTL
- Trigger types: rising or falling edges
- Minimum pulse width: 32 ns
- Clocking mode
- Internal clock
Internal clock sources: 20 MHz, 10 MHz, Timer#0 output (digital input pacer)
and Timer #1 output (digital output pacer) - External clock up to 40 MHz
- Handshaking
- Burst handshaking
- Programmable counter
- Base clock: 10 MHz
- Timer #0 as digital input pacer
- Timer #1 as digital output pacer
- Timer #2: as interrupt source
- Auxiliary digital I/O
- Number of channels
4-CH digital inputs
4-CH digital outputs - Compatibility: 5 V/TTL
- Data transfers: programmed I/O
- General
- I/O connector: One 100-pin SCSI-II female
- Operating temperature: 0 ˚Cto 60˚C
- Storage temperature: -20˚C to 80˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirements:
onboard terminator off: +5 V 830 mA typical
onboard terminator on: +5 V 1.0 A typical - Dimensions (not including connectors): 160 mm x 100 mm
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

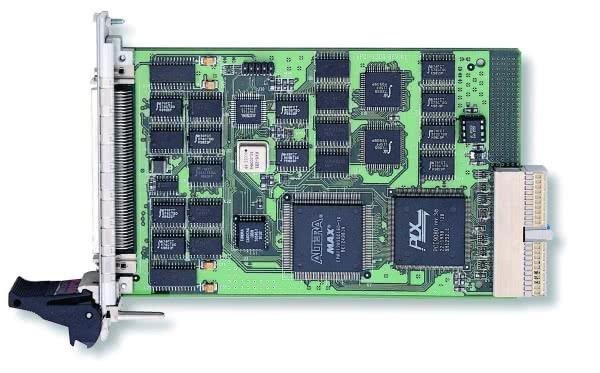

- cPCI-7300 - 80 MB/s High-Speed 32-CH Digital I/O Module
- Terminal Boards
- DIN-100S-01 - Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)
- Cables
- ACL-102100-1 - 100-pin SCSI-II cable (mating with AMP-787082-9), 1 m (DIN-100S-01)
