Features
- 3U Eurocard form factor, CompactPCI compliant (PICMG 2.0 R2.1)
- 48-CH digital TTL inputs/outputs
- Emulates 4/2/1 industry standard 8255 PPI (mode 0)
- Buffered circuits for higher driving capability
- Ports are independently configurable as input or output
- External latch signal available for digital inputs
- Output status read back
- Known power-up states
- Onboard 8254 timer/counter chip
- 1-CH 16-bit event counter to generate event interrupt
- 1-CH 32-bit timer to generate watchdog timer interrupt
- Multiple programmable interrupt sources
- +12 V and +5 V power available on the connector
- Onboard resettable fuses for power output protection
- Digital I/O
- Number of channels: 48 inputs/outputs
- Compatibility: 5 V/TTL
- Power-on states: pull-high, pull-low, floating (programmable)
- Digital logic levels:
Input high voltage: 2-5.25 V
Input low voltage: 0-0.8 V
Output high voltage: 2.4 V minimum
Output low voltage: 0.5 V maximum - Output driving capacity:
Source current: 15 mA
Sink current: 24 mA - Data transfers: programmed I/O
- Interrupt
- Interrupt #0 sources:
P1C0
P1C3
16-bit event counter - Interrupt #1 sources:
P2C0
P2C3
32-bit timer (based on 2 MHz internal clock) - General Specifications
- I/O connector: One 100-pin SCSI-II female
- Operating temperature: 0˚C to 60˚C
- Storage temperature: -20˚C to 80˚C
- Relative humidity: 5% to 95%, non-condensing
- Power requirement: 470 mA typical
- Dimensions (not including connectors): 160 mm x 100 mm
- Operating Systems
- Windows 7/Vista/XP/2000/2003 Server
- Linux
- Recommended Software
- AD-Logger
- VB.NET/VC.NET/VB/VC++/BCB/Delphi
- DAQBench
- Driver Support
- DAQPilot for Windows
- DAQPilot for LabVIEW
- DAQ-MTLB for MATLAB
- PCIS-DASK for Windows
- PCIS-DASK/X for Linux

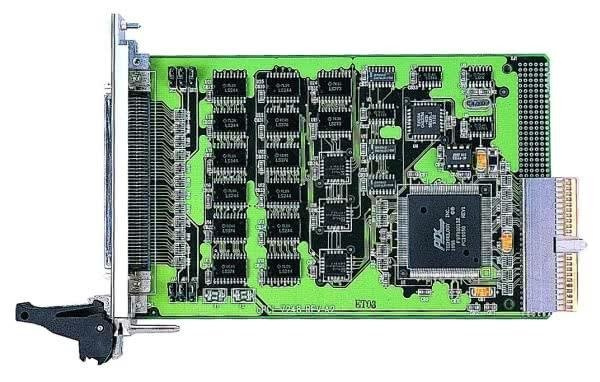

- cPCI-7248 - 48-CH DIO & Timer/Counter Module
- Terminal Boards
- DIN-100S-01 - Terminal Board with One 100-pin SCSI-II Connector and DIN-Rail Mounting (Cables are not included)
- Cable
- ACL-102100-1 - 100-pin SCSI-II cable (mating with AMP-787082-9), 1 M
