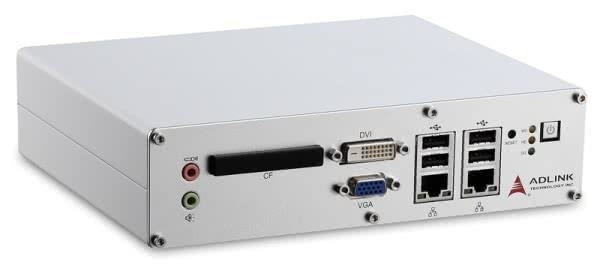

TPZ-1301 (End of Life)

Bezwentylatorowy medyczny komputer do zabudowy Topaz z Intel Atom D2550 1.86 GHz, 2 GB DDR3 SDRAM, VGA/DVI-D, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0 i audio (0 ~ +40°C). Zgodny z normą medyczną IEC/EN 60601-1 wyd. 3

---

Features

• Energy-efficient platforms featuring Intel Atom D2550 processors + NM10 chipsets
• Fanless, cable-free design with extended MTBF and reliability
• Medical safety IEC/EN-60601 certified
• Compact size for ease of system installation & integration
• Easy-to-clean housing
• Built-in 6 Vdc to 36 Vdc wide-range DC inputs
• Rich I/O: 2 RS-232/422/485 + 2 RS-232, 3 GbE ports, 6 USB 2.0, 4 Digital I/O, DVI+VGA.
• Extended function support from mini PCIe slots with USIM.

Specifications

• System Core


• Processor: Intel Atom D2550 1.86 GHz CPU

• Chipset: Intel NM10
• Video: VGA+DVI dual display, supports 1920 x 1200 resolution
• Memory: 2 GB DDR3 1066 MHz SODIMM module (Up to 4 GB support)



• I/O Interface


• Ethernet: 3 GbE ports (3x Intel 82574L)
• Serial Ports: 4 COM ports
  (2 software-programmable RS-232/422/485, and 2 RS-232)
• USB: 6 USB 2.0 ports
• DI/O: 4 digital input and output
• Audio: 1 mic-in and 1 line-out
• Mini PCIe: 1 internal mini PCIe card socket
• USIM: 1 USIM socket for 3G communication
• WDT: Watchdog timer support


• Power Supply


• DC Input: Built-in 6-36 Vdc wide-range DC input
• AC Input: [Option] SINPRO HPU101-108 100 W AC-DC Adapter w/ EN 60601-1 3rd edition certificated


• Storage Device


• SATA Storage: 1 onboard SATA-II port for 2.5" HDD/SSD installation
• CompactFlash: 1 external type I CF socket, supports PIO/DMA modes


• Mechanical


• Dimensions (W x D x H): 210 x 170 x 53 mm
• Weight: 1.8 kg
• Mounting: VESA 100 hardware kit for wall-mounting


• Environmental


• Operating Temperature: 0 ~ +40°C
• Storage Temperature: -40 ~ +85°C (excl. HDD/SSD/CF)
• Humidity: ~95% @ +40°C (non-condensing)
• Vibration:
  Operating, 5 Grms, 5 ~ 500 Hz, 3 axes (w/ CF or SSD)
  Operating, 0.5 Grms, 5 ~ 500 Hz, 3 axes (w/ HDD)
• ESD:
  Contact: +/-4 KV
  Air: +/-8 KV
• Shock:
  Operating, 100 G, half sine 11 ms duration (w/ CF or SSD)
• EMC: CE and FCC Class B
• Safety: IEC/EN 60601-1 3rd edition

Software Support

• Windows CE7.0 / XP / XP Embedded / Embedded Standard 7 / 7

Ordering Information

• TPZ-1301 - Fanless medical embedded system Topaz with dual-core Intel Atom D2550 1.86 GHz CPU, 2 GB DDR3 SDRAM and VGA/DVI-D, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0 and audio interface (0 ~ +40°C); IEC/EN 60601-1 3rd edition certified

Optional Accessories

• 4 GB DDR3 Upgrade - Upgrade to 4 GB DDR3 memory


• 320 GB HDD Option - Factory-installed 320 GB SATA hard disk drive (0 ~ +60°C)


• 100 W AC-DC Adapter - SINPRO HPU101-108 with EN60601 3rd edition certificated


• 32 GB SSD Option - Factory-installed 32 GB SSD (0 ~ +70°C)


• 64 GB SSD Option - Factory-installed 64 GB SSD (0 ~ +70°C)
