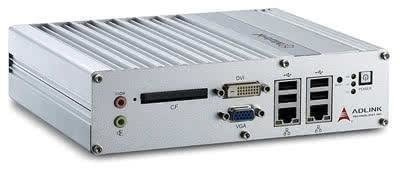

MXE-1302 (End of Life)

  • Bezwentylatorowy komputer do zabudowy z Intel Atom N2600 1.6 GHz, 2 GB DDR3 RAM, VGA/DVI, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0, 1x SATA-2 i audio (0 ~ +50°C); zasilanie 6 ~ 36 Vdc
  • MXE-1302 (End of Life)
Bezwentylatorowy komputer do zabudowy z Intel Atom N2600 1.6 GHz, 2 GB DDR3 RAM, VGA/DVI, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0, 1x SATA-2 i audio (0 ~ +50°C); zasilanie 6 ~ 36 Vdc



Features
  • Intel Atom N2600 processor + NM10 chipset
  • 2x software-programmable RS-232/422/485 + 2x RS-232 ports
  • 3x 1000/100/10 Mbps Ethernet ports, 6x USB 2.0 ports,
    4x digital input and output
  • 1x external CF slot and 1x internal PCIe Mini Card socket with USIM slot
  • Built-in wide-range DC power input 6 ~ 36 Vdc
  • Rugged, -20 ~ +70°C fanless operation (w/ industrial SSD)
Specifications
  • System Core

    • Processor: Intel Atom N2600 1.6 GHz CPU
    • Chipset: Intel NM10
    • Video: VGA+DVI dual display, supports 1920 x 1200 resolution
    • Memory: 2 GB DDR3 800 MHz SODIMM module
      (Up to 2 GB support)

  • I/O Interfaces

    • Ethernet: 3x GbE ports (3x Intel 82574L)
    • Serial Ports: 2x software-programmable RS-232/422/485, and 2x RS-232
    • USB: 6x USB 2.0 ports
    • DI/O: 4 digital input and output
    • Audio: 1x mic-in and 1x Line-out
    • Mini PCIe: 1x internal mini-PCIe card socket
    • USIM: 1x USIM socket for 3G communication
    • WDT: Watchdog timer support

  • Power Supply

    • DC Input: Built-in 6 ~ 36 Vdc wide-range DC input
    • AC Input: Optional 80 W external AC-DC adapter for AC input

  • Storage Device

    • SATA HDD: 1x onboard SATA-2 port for 2.5" HDD/SSD installation
    • CompactFlash: 1x type I CF socket, supporting PIO and DMA modes

  • Mechanical

    • Dimensions (W x D x H): 210 x 170 x 53 mm
    • Weight: 1.8 kg
    • Mounting: VESA 100 hardware kit for wall-mounting

  • Environmental

    • Operating Temperature:
      • Standard: 0 ~ +50°C
      • Extended temperature option: -20 ~ +70°C (w/industrial SSD)
    • Storage Temperature: -40 ~ +85°C (excl. HDD/SSD/CF)
    • Humidity: ~95% @ 40°C (non-condensing)
    • Operating Vibration:
      • 5 Grms, 5 ~ 500 Hz, 3 axes (w/ CF or SSD)
      • 0.5 Grms, 5 ~ 500 Hz, 3 axes (w/ 2.5" HDD)
    • Operating Shock:
      100 G, half sine 11 ms duration (w/ CF or SSD)
    • ESD: Contact +/- 4 kV, Air +/- 8 kV
    • EMC: CE and FCC Class A
Software Support
  • OS Information

    • Windows: CE7.0/XP/XP Embedded/Embedded Standard 7/7
    • Linux: Linux Distribution by Request
Ordering Information
  • MXE-1302 - Fanless embedded system with dual-core Intel Atom N2600 1.6 GHz CPU, 2 GB DDR3 RAM and VGA/DVI-I, 3x GbE, 2x RS-232, 2x RS-232/422/485, 6x USB 2.0, 1x SATA-2 and audio interface (-0 ~ +50°C); 6 ~ 36 Vdc power
Optional Accessories
  • 500 GB HDD Option - Factory-installed 500 GB SATA hard disk drive (0 ~ +60°C)

  • 8 GB industrial SSD Option - Factory-installed 8 GB SLC industrial-grade SATA solid state disk (-40 ~ +85°C)

  • 32 GB SSD Option - Factory-installed 32 GB MLC SATA solid state disk (0 ~ +70°C)

  • 80 W AC-DC Adapter - 80 W industrial-grade AC-DC adapter (-20 ~ +70°C)

  • 90 W AC-DC Adapter - 90 W commercial-grade AC-DC adapter (0 ~ +50°C)

  • Extended Temperature Option - Optional screening service to extend the operating temperature
    of the MXE-1300 series to -20 ~ +70°C
