Features
- 20-port 10GbE Fabric Interface switch
- 24-port Gigabit Ethernet Base Interface switch
- Freescale MPC8313E PowerQUICC II Pro 333 MHz control plane processor
- COM Express subsystem expansion site
- Broadcom BCM56312 and BCM56800 multilayer switch
- 10-Gigabit Ethernet SFP+ uplink port
- Dual AMC bays
- Control Plane
- CPU: Freescale MPC8313E PowerQUICC II Pro 333 MHz
- Memory: DDR2 512 MB SDRAM
64+64 MB on-board dual bootable flash memory - Bus: 32-bit/33 MHz PCI Bus
- Management:
• Serial console port, front panel RJ-45
• 10/100/1000BASE-T, front panel RJ-45
• USB 2.0, zone3 Type-A - Data Plane
- Switch Fabric:
• Broadcom BCM56312 24-port Gigabit Ethernet switch
• Broadcom BCM56800 20-Port 10GbE Ethernet switch - PHY: Broadcom BCM5466 Quad-port 10/100/1000BASE-T PHY
- COM Express Expansion Site
- Form Factor: COM Express Type 2, 95 x 125 mm
- I/O Interface:
• One GbE port to BCM56312
• 2x USB ports (1x front panel, 1x RTM)
• PCIe x4 (AMC#1: AMC.1 Type4)
• 4x SATA Ports (2x AMC.3, 2x RTM)
• Serial console port, front panel RJ-45
• Analog display port, zone3 DB-15 - Base Interface
- Channels: 12 x 10/100/1000BASE-T Base Interface channels, for 14-slot systems
- Egress: 6 x 10/100/1000BASE-T RJ-45 egress ports
- ShMC Port: 2 x 10/100BASE-TX ShMC ports compliant to PICMG 3.0 R2.0 ECN002
- Inter-Switch: 10/100/1000BASE-T inter-switch link
- Fabric Interface
- Channels: 12x 10GbE Interface channels, for 14-slot systems
- Inter-Switch: 10GbE inter-switch link
- I/O Interfaces
- AdvancedMC:
• Two AMC.0 Mid-size bays
• AMC#1: AMC.1 Type 4 (from COM-E)
AMC.3 S1 SATA (from COM-E)
• AMC#2: AMC.2 E1 (to BCM56312)
AMC.3 S1 SATA (from COM-E)
XAUI x4 (for 56800 to AMC-3420) - Ethernet:
• Six Egress 10/100/1000BASE-T RJ-45 (from 56312)
• Two 10Gigabit Ethernet SFP+ cage (from 56312)
• One TSEC RJ45 (from MPC8313E) - Serial Port: One RJ-45 to COM Express, one RJ-45 to MPC8313
- USB: Type-A to COM Express sub-system
- Mechanical and Environmental
- Form Factor: PICMG 3.0 R2.0 ECN002 AdvancedTCA
- Dimensions (L x W x H): 322.25 x 280 mm x 6HP
- Weight: 2.4 kg
- Operating Temp.: -5 ~ +55°C
- Storage Temp.: -20 ~ +80˚C
- Humidity: 5 ~ 95%, non-condensing
- Shock: 15 G peak-to-peak, 11 ms duration, non-operation
- Vibration:
• Non-operation: 1.88 Grms, 5 ~ 500 Hz each axis
• Operation: 0.5 Grms, 5 ~ 500 Hz each axis - Power Consumption: 100 W (COM Express not included)
- Certifications: FCC, CE, UL, NEBS Level 3 (design)

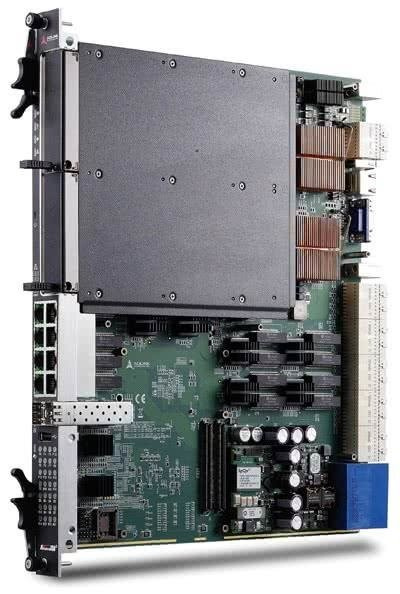

- aTCA-3420 - PICMG 3.0 20-Port 10GbE AdvancedTCA Fabric Interface Switch
