Features
- PICMG 2.11 CompactPCI Power Interface compliant
- 6U CompactPCI 8HP form factor
- PICMG 2.11 47-pin CompactPCI in-rack power module interface
- 400 W DC output
- Active PFC (Power Factor Correction) meets IEC1000-3-2 Harmonic Correction
- Internal OR-ing Diodes for N+1 redundancy
- Hot swappable
- Active current sharing
- EN 55022 & FCC Class A
- Supports remote ON/OFF
- Supports power failure signal & degradation signal
- PICMG Standards: PICMG 2.11 CompactPCI 47-pin Power Interface compliant
- Form Factor: 6U cPCI (233.33 x 160 mm), 2-slot (8HP) wide
- Input Voltage: 100 ~ 240 Vac ±10%
- Input Frequency: 50 ~ 60 Hz ±5%
- Input Current: 5.1 A @115 Vac / 2.5 A @ 230 Vac
- Inrush Current: < 30 A @230 Vac
- Power Factor Correction (PFC, only for AC): Typical 0.97-0.99
- Meets Harmonic Correction IEC1000-3-2
- Output Voltage/Current:
• 5 V: Typ. 40.0 A, Max. 50.0 A
• 3.3 V: Typ. 20.0 A, Max. 40.0 A
• +12 V: Typ. 10.0 A, Max. 15.0 A
• -12 V: Typ. 2.0 A, Max 5.0 A
• Max. load is the continuous operating load of each rail individually.
• The Max. load of each rail cannot be drawn from all outputs simultaneously. - Output Voltage: 1.0 A @ +5 V - Minimum Load
- Output Wattage: Typical 400 W continuous
- Line Regulation: Typical 0.1%
- Load Regulation: Typical 1-3%
- Ripple:
• 50 mV @ +5 V and 3.3 V outputs,
• 120 mV @ +12V and -12V outputs - Hold-up Time: 10 ms after power fail signal
- Efficiency: Typical 79-83%
- Output voltage sense and current sharing: Available at 5 V , 3.3 V and +12 V outputs
- N+1 Redundancy: Installed with internal OR-ing diodes at all outputs for N+1 redundancy operation
- Remote ON/OFF: Available at [INH#] & [EN#]
- Power Failure Signal: Available at [FAL#] pin
- Power Degradation Signal: Available at [DEG#] pin
- Protections:
• Over Temperature Protection (OTP): 70˚C
• Over Current Protection (OCP): Installed at each rail
• Over Load Protection (OLP): Typical 120% max. load, fully protected against output overload or short circuit.
• Over Voltage Protection (OVP): Built-in at all outputs - Status LED:
• < Green LED >: [POWER] means valid input voltage
• < Amber LED >: [FAULT] means a critical fault - Earth Leakage: < 0.9mA @ 230 Vac > N/A
- Operating Temp.: 0 ~ +70˚C
(0˚C to +40˚C at full load with specified air flow. Derates linearly to 50% at +70˚C.) - Storage Temp.: -20 ~ +85˚C
- Humidity: 20 ~ 90% non-condensing
- Shock: 15 G peak-to-peak, 11 ms duration, non-operation
- Vibration:
• Operation: 1.88 Grms, 5 ~ 500 Hz, each axis - Cooling Requirement: Minimum 20 CFM airflow is required for typical full rating power
- Compliance: IEC950, EN 55022, FCC Class A, IEC60950 Class I

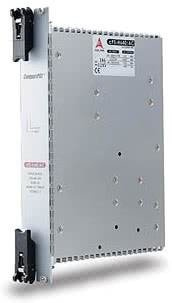

- cPS-H640/AC - PICMG 2.11 47-Pin Hot-Swap Redundant 6U CompactPCI 8HP 400 W Power Module with Universal AC Input
