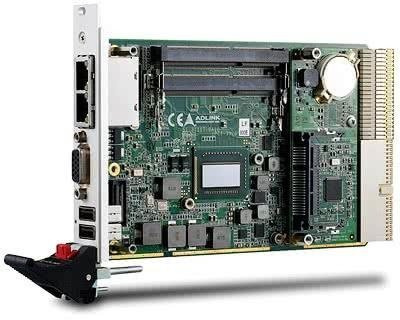

cPCI-3971G/655L/M8G

  • Karta 3U CompactPCI PlusIO 8HP z procesorem Intel Core i7-2655LE 2.2 GHz, 8 GB DDR3, VGA/2 x DP, 2 x GbE, 3 x USB 2.0, 2 x RS-232/422/485, 1 x SATA i 1 x CF; w komplecie 1 x kabel DP-DVI
  • cPCI-3971G/655L/M8G
Features
  • 2nd generation Intel Core i7 quad/dual-core processor
  • Supports DDR3-1333 SDRAM with ECC via SODIMM, up to 16GB
  • Supports IPMI for system health monitoring
  • Onboard CF or CFast slot
  • 1PCI33/4PCIE2.5/3SATA3/3USB2/2ETH1G
Specifications
  • Processor & System

    • CPU:
      • μFC-BGA Intel Core i7-2655LE Processor 2.2 GHz (Turbo boost to 2.9 GHz), 4 MB LLC cache, 25 W TDP
      • Supports Intel Hyper-Threading and Turbo Boost Technology
    • Chipset: Intel QM67 PCH
    • Memory: Dual channel DDR3-1067/1333 SDRAM with ECC via two SODIMM sockets, up to 16 GB capacity (dependent on availability of memory modules)
    • BIOS: AMI EFI BIOS, 64 Mbit SPI flash memory
    • CompactPCI Bus:
      • PCI 32-bit/33 MHz, 3.3 V or 5 V universal V(I/O)
      • Supports operation in system slot as master or in peripheral slot as stand-alone blade without connectivity to CompactPCI bus (Satellite mode)
    • PICMG Standards:
      • PICMG 2.0 CompactPCI R3.0
      • PICMG 2.1 Hot Swap R2.0
      • PICMG 2.9 System Management R1.0
      • PICMG 2.30 PlusIO

  • Connectivity

    • PMC/XMC: One optional PCI 32-bit/66 MHz PMC site or PCI-Express x1 XMC site on 2nd or 3rd layer
    • Ethernet: Two PCIe Intel 82574L Gigabit Ethernet controllers on SBC for two 10/100/1000BASE-T ports on front panel, switchable to J2
    • Graphics:
      • Integrated in Intel processor, 3D engine
      • DB-15 VGA port on front panel, switchable to rear, supports up to QXGA 2048x1536 pixels • • @75Hz,  32-bits
      • Two DisplayPorts on front panel, support up to 2560×1600 pixels @60Hz; DVI, VGA and HDMI interfaces available by adapter cable
      • Dual independent display
    • Serial Port:
      • One RS-232/422/485 port on front panel
      • One RS-232/422/485 10-pin header on DB-3970L2
    • PS/2:
      • Front panel PS/2 Keyboard Mouse port
    • USB:
      • Up to four USB 2.0 front panel ports
      • Three USB 2.0 ports to J2
    • PCI-Express: PCI-Express x4 to J2

  • Storage

    • SBC:
      • One SATA 6 Gb/s direct connector for 2.5" onboard HDD
      • CompactFlash socket
      • Optional CFast socket (site shared with CF adapter board)
    • RTM:
      • Three SATA 3Gb/s ports to J2
      • Supports SATA RAID 0/1/5/10

  • Operating System

    • OS:
      • Microsoft Windows XP Professional
      • Microsoft Windows 7, 64bit version
      • Red Hat Enterprise Linux 6
      • Fedora 14
      • Wind River VxWorks 6.8, 6.9

  • Miscellaneous

    • LED: Power (green/red), WDT (amber), HDD (blue), Overheat (red)
    • Battery: Coin cell lithium battery onboard for RTC CMOS RAM
    • Watchdog Timer: System Reset and NMI, with programmable interval, 1-65535 sec or 1-65535 minutes
    • Hardware Monito: Monitors CPU temperature, system temperature, and DC voltages by IPMI
    • TPM: Infineon SLB 9635 TT1.2 (optional, support upon request)

  • Mechanical & Environmental

    • Form Factor:
      • 3U 8HP CompactPCI
      • 100mm x 160mm (LxW)
      • Equipped with UHM J2 connector for full PICMG 2.30 compatibility
    • Operating Temperature: 0 ~ +60°C
    • Storage Temperature: -40 ~ +85°C
    • Rel. Humidity: 95% non-condensing
    • Shock: 20 G peak-to-peak, 11 ms duration, non-operating
    • Vibration 2 Grms random vibration, 5 ~ 500 Hz, each axis, operating
    • Power Consumption: 3.3 V@0.71 A, 5 V@6.97 A; Total 37.2 W
      (Core i7-2655LE, 4GB DDR3-1333 SODIMM under Windows XP with 100% CPU loading)
    • Weight Net: 389 g with heatsink
    • Certifications: CE/ FCC
Ordering Information
  • cPCI-3971G/655L/M8G - 2-slot (8HP) 3U CompactPCI PlusIO Blade with Intel i7-2655LE processor and 2 x 4GB DDR3-1333, 2 x GbE, VGA, 4 x USB, KB/MS, COM, 2 x DP, SATA, CF (one DP to DVI cable is included)
Optional Accessories
  • DB-3CFAST - CFast socket adapter board

  • DP-DVI cable - DisplayPort to DVI adapter cable

  • DP-VGA cable - DisplayPort to VGA adapter cable

  • DP-HDMI cable - DisplayPort to HDMI adapter cable
