Features
- Supports Intel Atom D510
- Up to 2 GB DDR2-800 soldered memory
- -40˚C to +85˚C operating, conduction cooled with conformal coating
- Onboard CompactFlash socket
- 2 x GbE, VGA, USB, 2 x COM, 2 x SATA to rear
- Processor & System
- CPU: μFC-BGA dual-core Intel Atom Processor D510 1.66 GHz, 1 MB L2 cache, TDP 13 W
- Chipset: Intel ICH8M I/O Controller Hub
- Memory: Single channel DDR2-667/800 SDRAM soldered onboard, up to 2 GB capacity
- BIOS: AMIBIOS8, 16 Mbit SPI flash memory
- CompactPCI Bus:
• PCI 32-bit/33 MHz, 3.3 V or 5 V universal V (I/O)
• Host only - PICMG Standards:
• PICMG 2.0 CompactPCI R3.0
• PICMG 2.1 Hot Swap R2.0 - Connectivity
- Ethernet:
• Two PCI-Express Intel 82574L Gigabit Ethernet controllers
• Two 10/100/1000BASE-T ports to J2 - Graphics:
• Integrated in Intel Atom processor
• Analog monitor support to rear up to QXGA 2048x1536 pixels @60 Hz, 32-bit - USB One to J2
- Serial Port Two full duplex serial ports to J2
- PCI-Express One PCI-Express lane to J2
- GPIO Four GPIO pins to J2
- Storage
- SBC: CompactFlash socket
- RTM: Two 7-pin SATA signal connectors
- Operating System
- OS:
• Microsoft Windows XP Professional, x64 Edition
• Microsoft Windows 7
• Fedora 12
• Red Hat Enterprise Linux 5.3
• Wind River VxWorks 6.8, 6.7, 5.5.1 - Miscellaneous
- LED: Power (green), WDT (red)
- Battery: Rechargeable Gold Cap for RTC CMOS RAM
- Watchdog Timer: System Reset and NMI, with programmable interval, 1~65535 seconds or minutes
- Hardware Monitor: Monitors CPU temperature, system temperature and DC voltages
- Mechanical & Environmental
- Form Factor:
• 3U 4HP CompactPCI
• 100mm x 160mm (LxW) - Operating Temperature: -40 ~ +85˚C
- Storage Temperature: -40 ~ +85˚C
- Rel. Humidity: 95% non-condensing
- Shock: 40 G half sine, 11 ms duration in operating
- Vibration: 22 ~ 2000 Hz, 5 g (sine), operating
- Power Consumption:
• 3.04 A@5 V; Total 15.2 W (Atom N450 1.60 GHz, 512 MB soldered DDR2-667 under Windows XP with 100% CPU loading)
• 3.87 A@5 V; Total 19.35 W (Atom D510 1.66 GHz, 512 MB soldered DDR2-667 under Windows XP with 100% CPU loading) - Weight: Net weight 466 g with heatsink
- Safety & EMI
- Certifications: CE/ FCC

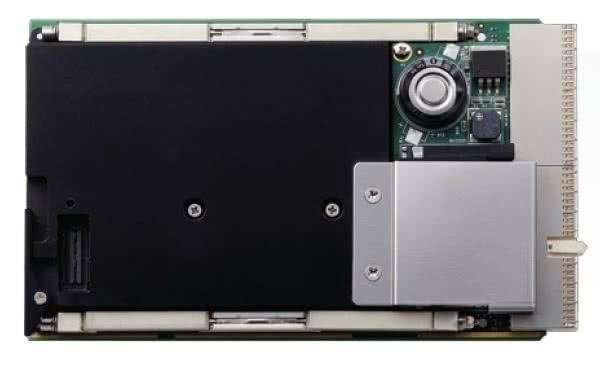

- CT-31/D51/M1G - Conduction Cooled 3U CompactPCI blade with Intel Atom processor D510 and 1GB DDR2-667/800 soldered memory
- cPCI-R3610 - 8 HP Rear I/O module for cPCI-3610 with GbE x 2, COM x 2, USB x 1, SATA x 2, VGA, 50 mm depth
- cPCI-R3610T - 8HP Rear I/O module for cPCI-3610 with GbE x 2, COM x 2, USB x 1, SATA x 2, VGA, 80 mm depth
