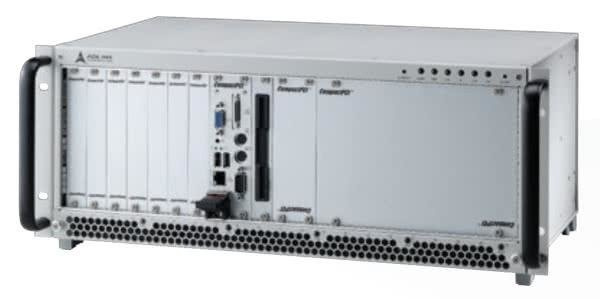

cPCIS-2630

  • Obudowa 4U CompactPCI z 8. slotami dla kart 3U cPCI/PXI, 1 slotem dla 50 mm modułu RTM (slot systemowy) i zasilaczem ATX 400 W
  • cPCIS-2630
Features
  • 3U CompactPCI backplane with seven peripheral slots and one system slot
  • Temperature, voltage, and fan monitoring LEDs
  • Supports rear I/O backplane with P2 connectors for cPCI
  • 50 mm depth RTMs
  • Temperature, voltage, and fan monitoring LEDs
  • Hot-swappable cooling fans & filter
  • 400 W ATX Power supply
Specifications
  • CompactPCI Standards: CompactPCI 2.0 R2.0
  • Form Factor: 3U CompactPCI with 50 mm depth rear I/O
  • Enclosure:
    • EIA RS-310C 19" 4U high rackmount enclosure
    • Coated metal plate outer covering
    • Guarded power switch and reset button
  • Alarm Module:
    • Monitors inner chassis temperature and fan status
    • Abnormal status will generate alarm and LED warning
    • Alarm reset
    • LED shows power voltage status on 5 V, 3.3 V, 12 V, and -12 V
  • Cooling System:
    • Front-access hot-swappable low noise fan trays for intake:
    • 12 Vdc brush-less, ball bearings
    • Five fan trays with 36 CFM/fan
    • Rated fan speed 2800 RPM
    • Rated power for each fan: 1.56 W
  • Power Supply: 1 x 400 W ATX
  • Backplane: 8-slot (1 x System Slot + 7 x Peripheral Slot)
  • Dimensions (W x H x D): 448.4 x 177.8 x 258 mm, excluding brackets
  • Operating Temp.: 0 ~ +60˚C
  • Storage Temp.: -20 ~ +80˚C
  • Humidity: 5% to 95%, non-condensing
  • Shock: 15 G peak-to-peak, 11 ms duration, non-operation
  • Vibration:
    • Non-operation: 1.8 Grms, 5 ~ 500 Hz, each axis
    • Operation: 0.5 Grms, 5 ~ 500 Hz, each axis, tested with 2.5" HDD
Ordering Information
  • cPCIS-2630 - 3U CompactPCI Subsystem with 8-slot Backplane + 1-slot x 50 mm depth RTM (system slot only) and 400 W ATX Power Supply
Note: Do not include any system or peripheral boards.
