Features
- Intel Core i7/i5/i3 Processor
- HDMI, DVI, VGA display output
- 1 x PCI Express x16 + 1 x PCI slot
- Intel Matrix Storage Technology supports RAID 0/1/5/10
- Intel Active Management Technology 7.0
- Processor & System
- CPU:
• Intel Core i7-2710QE, 2.1 GHz, 6 M Last Level Cache, 32 nm, 45 W TDP (4C)
• Intel Core i5-2510E, 2.5 GHz, 3 M Last Level Cache, 32 nm, 35 W TDP (2C)
• Intel Core i3-2330E, 2.2 GHz, 3 M Last Level Cache, 32 nm, 35 W TDP (2C)
• Intel Celeron B810, 1.6 GHz, 2 M Last Level Cache, 32 nm, 35 W TDP (2C) - Chipset: Intel QM67 Express Chipset
- Memory: 2 x 204-pin SO-DIMM sockets, vertical type
Dual-Channel DDR3 1066/1333 MHz, up to 8 GB - BIOS: AMI 32 Mb SPI flash
- Watchdog Timer: 1-255 sec or 1-255 min software programmable, can generate system reset
- Hardware Monitor: CPU/System temperature, fan speed and onboard DC voltages
- Operation Systems:
• Windows XP, 7 32/64-bit
• Fedora 14, Red Hat Enterprise Linux 5 - I/O Interfaces
- Serial ATA:
• 2 x SATA 6 Gb/s ports
• 1 x SATA 3 Gb/s ports - Expansion Slot:
• 1 x PCIe x16 slot,
• 1 x PCI slot,
• 1 x PCI Express Mini Card slot - USB: 6 x USB 2.0 ports (4 x faceplate, 2 x onboard pin headers)
- KB/MS: PS/2 keyboard/mouse by internal pin header
- Serial Port:
• 3 x RS-232
• 1 x RS-232/422/485 - Audio
- Audio Codec: Realtek ALC892
- Interface: Line-in, Line-out, Mic-in
- Display
- Graphics: Intel HD Graphics integrated in processor
- VRAM: Shared memory
- VGA: Up to 2048 x 1536 @60 Hz (QXGA)
- DVI: DVI-D, up to 1920 x 1200 @60 Hz
- HDMI: HDMI Type A, up to 1920 x 1200 @60 Hz
- LVDS: Dual Channel 24-bit LVDS, up to 1600 x 1200 (UXGA)
- Ethernet
- Controller: Intel 82579LM + 82574L
- Interface: PCI Express x1 bus
- Wake On LAN: Yes
- Mechanical and Environmental
- Form Factor: Mini-ITX
- Dimensions (L x W): 170 x 170 mm
- Operating Temp.: 0 ~ +60˚C
- Storage Temp.: -20 ~ +80˚C
- Certifications: CE, FCC Class A
- Relative Humidity: 10 ~ 90%, non-condensing

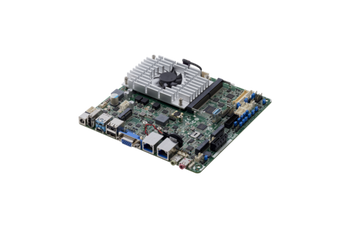

- MI-220 - Mini-ITX Intel Core i7/i5 Industrial Motherboard
- PGA988 Cooler cooler for MI-220, with backplate
