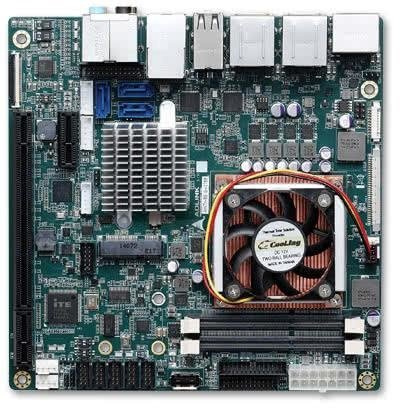

AmITX-BE-G-RX427BB

  • Płyta główna Mini-ITX z procesorem AMD Quad Core RX-427BB 2.7 GHz, 4 x DP, 2 x GbE, 3 x RS-232, 1 x RS-232/422/485, 4 x USB 3.0, 6 x USB 2.0, 3 x SATA-3 i HD audio
  • AmITX-BE-G-RX427BB
Płyta główna Mini-ITX z procesorem AMD Quad Core RX-427BB 2.7 GHz, 4 x DP, 2 x GbE, 3 x RS-232, 1 x RS-232/422/485, 4 x USB 3.0, 6 x USB 2.0, 3 x SATA-3 i HD audio



Features
  • AMD Embedded R-Series APU with A77E Fusion Controller Hub
  • Dual SODIMM socket DDR3L-1666 memory (up to 16 GB)
  • PCIe x16, PCIe x1 and Mini PCIe expansion
  • 4 DisplayPort and optional LVDS output
Specifications
  • Processor & System

    • CPU: AMD Quad Core RX-427BB 2.7 GHz (3.6GHz boost), 35 W (4C/8CU)
    • Memory: Dual channel non-ECC 1333/1666 MHz DDR3L memory
      up to 16 GB in dual vertical SODIMM sockets
    • BIOS:
      • AMI EFI with CMOS backup in 8 MB SPI BIOS
      • BIOS socket onboard and SPI header for external BIOS
      • Optional TPM module soldered onboard
    • SEMA Support: Supports: voltage/current monitoring, power sequence debug support, AT/ATX mode control, logistics and forensic information, flat panel control, general purpose I2C, failsafe BIOS (dual BIOS), watchdog timer, triple smart fan control
    • Debug Header: 40-pin multipurpose flat cable connector. Use in combination with DB-40 debug module providing BIOS POST code LEDs, BMC access, SPI BIOS flashing, power testpoints, debug LEDs

  • I/O Interfaces

    • Expansion Slots:
      • 1 PCIe x16 Gen3 slot (PCIe 3.0)
      • 1 PCIe x1 Gen2 slot (PCIe 2.0)
      • 1 full-size Mini PCIe slot supporting PCIe/mSATA and USB (on the top side)
      • 1 half-size Mini PCIe slot supporting PCIe and USB (on the bottom side)
      • 1 SPI header for external BIOS
    • Serial ATA:
      • 3x SATA 6.0 Gbps ports
      Ports 0 and 1 provide clearance for SATADOMs
    • USB:
      • 4x USB 3.0 and 4x USB 2.0 on Rear I/O
      • 2x USB 2.0 on Frontpanel header
      • 2x USB 2.0 on standard header
      • 1x USB 2.0 on vertical connector with keep out area for dongle
      • 1x USB 2.0 on Mini PCIe and 1x USB 2.0 on mSATA slot
    • KB/MS: 1x PS/2 internal header
    • Serial Ports:
      • 1x RS-232/422/485 on internal header
      • 3x RS-232 on internal headers
    • Digital IO: 8 GPI , 8 GPO on internal feature connector

  • Audio

    • Audio Codec: Realtek ALC886
    • Interfaces:
      • 7.1 channel audio via 5 jacks and S/PDIF output on rear I/O
      • 7.1 channel audio signals and S/PDIF output on internal header

  • Display

    • Graphics core: AMD Radeon HD 9000
    • DisplayPort: 4 outputs with resolution up to 4096 x 2160 @ 60Hz
    • LVDS: Optional single/dual channel 24-bit up to 1920 x 1200 @ 60 Hz

  • Ethernet

    • Controller: 2x Intel i210 (MAC/PHY) Ethernet controller
    • Interface: PCI Express x1 Bus
    • Wake On LAN: Yes

  • Power

    • Standard Input:
      • ATX = 12 V ±5%/5Vsb ±5% by internal header
      • AT = 12 V ±5% by internal header
    • Peripherals output: Onboard headers for fan and SATA power

  • Mechanical and Environmental

    • Form Factor: Mini-ITX
    • Dimensions (L x W): 170 x 170 mm
    • Operating Temp.: 0 ~ +60˚C
    • Storage Temp.: -20 ~ +80˚C
    • Certifications: CE, FCC Class A
    • Relative Humidity: 10 ~ 90%, non-condensed
Ordering Information
  • AmITX-BE-G-RX427BB - Mini-ITX Industrial Motherboard with AMD Quad Core RX-427BB 2.7 GHz



Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.

Gwarancja 24 miesiące - Gwarancja udzielana przez sprzedawcę na okres 24 miesięcy.

Gwarancja standardowa 24 miesiące
