AmITX-IB-I

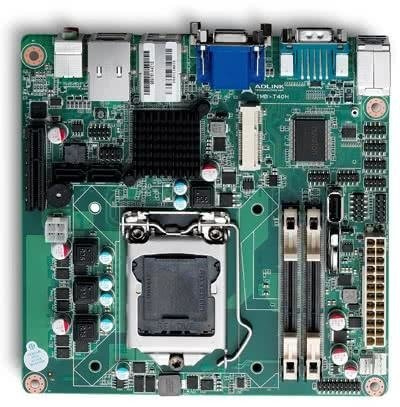

Płyta główna Mini-ITX z podstawką LGA1155 dla procesorów Intel Core i7/i5/i3, VGA/DVI-D/iHDMI, 2 x PCIe GbE, 5 x RS-232, 1 x RS-232/422/485, 2 x USB 3.0, 7 x USB 2.0, 2 x SATA-2 i HD audio

Features

• LGA1155 Intel 3rd Gen Core i7/i5/i3 Processor
• VGA, DVI-D, HDMI display output
• PCIe x4 and PCIe Mini Card slot
• Dual USB 3.0 ports

Specifications

• Processor & System


• CPU:
  • Intel Xeon E3-1275v2, 3.5 GHz, 8 M Cache, 22 nm, 77 W TDP, LGA1155 (4C)
  • Intel Xeon E3-1225v2 , 3.2 GHz, 8 M Cache, 22 nm, 77 W TDP, LGA1155 (4C)
  • Intel Core i7-3770, 3.40 GHz, 8 M Cache, 22 nm, 77 W TDP, LGA1155 (4C)
  • Intel Core i5-3550S, 3.0 GHz, 6 M Cache, 22 nm, 65 W TDP, LGA1155 (4C)
  • Intel Core i3-3220, 3.30 GHz, 3 M Cache, 22 nm, 55 W TDP, LGA1155 (2C)
  • Intel Pentium G2120, 3.10 GHz, 3 M Cache, 22 nm, 55 W TDP, LGA1155 (2C)
  • Intel Celeron G1620, 2.7 GHz, 2 M Cache, 22 nm, 55 W TDP, LGA1155 (2C)
• Chipset: Intel H61 Express Chipset
• Memory:
  • Two channel DDR3-1333/DDR3L-1600 (DDR3L I/O Voltage is 1.5 V) support
  • Two 204-pin DDR3 SODIMM Socket (Vertical type)
  • Maximum capacity per DIMM 8 GB
  • Maximum capacity 16 GB
  • DDR3 1333 support 1G/2G/4G
  • DDR3L(DDR3L I/O Voltage is 1.5 V) 1600 support 2G/4G/8G
  • No ECC support
• BIOS: AMI 32 Mb SPI BIOS
• Watchdog Timer: 1~255 sec or 1~255 min software programmable, can generate system reset
• Hardware Monitor: CPU/System temperature, fan speed and onboard DC voltages
• Operation Systems:
  • Windows XP/7 32/64-bit,
  • Fedora 17,
  • RedHat Enterprise
  • Linux 6


• I/O Interfaces


• Serial ATA: 2x Serial ATA II port with 3.0 Gbps data transfer rate
• Expansion Slots:
  • 1x PCI Express x4 slot complied with PCI Express Base 2.0 specification
  • 1x Mini-PCIe full card support (Gen2 IF colay with USB2.0/mSATA SATAII)
• USB:
  • 2x USB3.0 connector at rear side
  • 4x USB2.0 connector at rear side,
  • 1x USB2.0 connector on board (vertical type),
  • 2x USB2.0 pin header by onboard pin headers
• KB/MS: 1x PS/2 connector at rear side
• Serial Port:
  • 5x RS-232 pin headers,
  • 1x RS-232/422/485 connector at rear side
• Digital IO: 8 in and 8 out, one +5V and one ground pin,
  one SMB_CLK and one SMB_DATA pin


• Audio


• Audio Codec: Realtek ALC892
• Interface: Line-out, Mic-in


• Display


• Graphics: Intel HD Graphics (based on CPU)
• CRT: VGA support up to 2048 x 1536@75 Hz
• DVI: DVI-D support up to 1920x1200@60 Hz
• HDMI: HDMI V1.3a support up to 1920x1200@60 Hz
• Dual Display: VGA+DVI-D, VGA+HDMI, DVI+HDMI


• Ethernet


• Controller: 2x 10/100/1000BASE-T Gigabit Ethernet ports by Realtek RTL8111E
• Interface: PCI Express x1 Bus
• Wake On LAN: Yes


• Mechanical and Environmental


• Form Factor: Mini-ITX
• Dimensions (L x W): 170 x 170 mm
• Operating Temp.: 0 ~ +60˚C
• Storage Temp.: -20 ~ +80˚C
• Certifications: CE, FCC Class A
• Relative Humidity: 10 ~ 90%, non-condensed

Ordering Information

• AmITX-IB-I - Mini-ITX Intel Core i7/i5/i3 Industrial Motherboard
