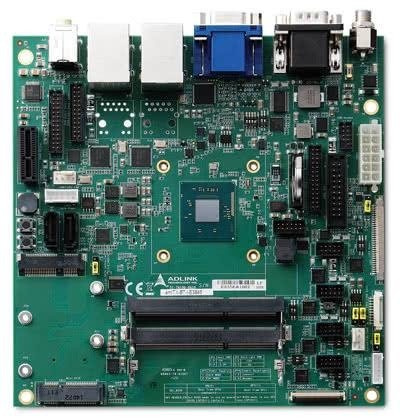

AmITX-BT-I-N2930

  • Płyta główna Mini-ITX z procesorem Intel Celeron Quad Core N2930 1,83 GHz, VGA/LVDS/HDMI, 2 x GbE, 1 x RS-232, 5 x RS-232/422/485, 4 x USB 3.0, 4 x USB 2.0, 2 x SATA-2 i HD audio
  • AmITX-BT-I-N2930
Płyta główna Mini-ITX z procesorem Intel Celeron Quad Core N2930 1,83 GHz, VGA/LVDS/HDMI, 2 x GbE, 1 x RS-232, 5 x RS-232/422/485, 4 x USB 3.0, 4 x USB 2.0, 2 x SATA-2 i HD audio



Features
  • Intel Celeron Quad Core N2930 1.83 GHz Processor
  • Dual SODIMM socket DDR3L-1333 memory (up to 16 GB)
  • 24-bit dual channel LVDS and HDMI
  • OpenGL 3.0, OpenCL 1.2, DX11, H.264, MPEG2, MCV, VC-1, VP8 support
Specifications
  • Processor & System

    • CPU: Intel Celeron Quad Core N2930 1.83 GHz, 400/756 (Turbo) 7.5 W (4C/1066)
      • Supports: single, dual or quad Out-of-Order Execution (OOE)
      processor cores, Intel VT-x, Intel SSE4.1 and SSE4.2, Intel
      64 architecture, IA 32-bit , PCLMULQDQ Instruction DRNG,
      Intel Thermal Monitor (TM1 & TM2)
      • Note: the availability of the features may vary between processor SKUs
    • Memory: Dual channel non-ECC 1333/1066 MHz DDR3L memory up
      to 8 GB in dual stacked SODIMM sockets
    • BIOS: AMI EFI with CMOS backup in 8MB SPI BIOS
    • SEMA Support:
      Supports: Voltage/Current monitoring, Power sequence debug support, AT/ATX mode control, Logistics and Forensic information, Flat Panel Control, General Purpose I2C, Failsafe BIOS (dual BIOS), Watchdog Timer and Fan Control
    • Debug Header:
      40-pin multipurpose flat cable connector. Use in combination with DB-40 debug module providing BIOS POST code LED, BMC access, SPI BIOS flashing, Power Testpoints, Debug LEDs

  • I/O Interfaces

    • Expansion Slots:
      • 1x PCIe x1 slot compliant with PCI Express Base 2.0 specification
      • 1x Mini-PCIe full card support with USB and SIM card socket
      • 1x mSATA full card support with USB
    • Serial ATA: 2x SATA 3.0 Gbps port (one shared with mSATA)
    • USB:
      • 4x USB 3.0 on rear I/O
      • 2x USB 2.0 on front panel header
      • 2x USB 2.0 on standard header
      • 1x USB 2.0 on Mini-PCIe and 1x USB 2.0 on mSATA slot
    • KB/MS: 1x PS/2 internal header
    • Serial Ports:
      • 1x RS-232 on Rear I/O,
      • 1x RS-232/422/485 on Rear I/O
      • 4x RS-232/422/485 with 5V/12V support on internal headers
    • Digital IO: 8x GPI, 8x GPO on internal feature connector

  • Onboard Storage

    • eMMC: Optional soldered eMMC with 8-64GB capacity
    • SD Card: Mini SD card slot on the bottom side

  • Audio

    • Audio Codec: Realtek ALC886
    • Interfaces:
      • Line-out, Mic-in on rear I/O
      • 7.1 channel signals and S/PDIF output on internal header

  • Display

    • Graphics Core: Intel Gen7 graphics core
    • VGA: Analog VGA up to 1920x1200 @ 60 Hz
    • HDMI: Supports HDMI 1.3a, up to 1920 x 1200 @ 60 Hz
    • LVDS: Single/Dual channel 24-bit up to 1920 x 1200 @ 60 Hz

  • Ethernet

    • Controller: 2x Intel i210 (MAC/PHY) Ethernet controller
    • Interface: PCIe x1 bus
    • Wake-on-LAN: Yes

  • Power

    • Standard Input:
      • ATX = 12 V±5% / 5 Vsb ±5% from internal header
      • AT = 12 V±5% from internal header or external screw connector
    • Peripherals Output: Onboard headers for fan and SATA power

  • Mechanical and Environmental

    • Form Factor: Mini-ITX
    • Dimensions (L x W): 170 x 170 mm
    • Operating Temp.:
      • Standard Operating Temperature: 0 ~ +60°C
      • Extreme Rugged Operating Temperature: -40 ~ + 85°C
    • Humidity:
      • 5 ~ 90% RH operating, non-condensing
      • 5 ~ 95% RH storage
    • Shock and Vibration:
      • IEC 60068-2-64 and IEC-60068-2-27
      • MIL-STD-202F, Method 213B, Table 213-I, Condition A and Method 214A, Table 214-I, Condition D
    • HALT: Thermal Stress, Vibration Stress, Thermal Shock and Combined Test
Ordering Information
  • AmITX-BT-I-N2930 - Mini-ITX with Intel Celeron Quad Core N2930 1.83 GHz



Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.

Gwarancja 24 miesiące - Gwarancja udzielana przez sprzedawcę na okres 24 miesięcy.

Gwarancja standardowa 24 miesiące
