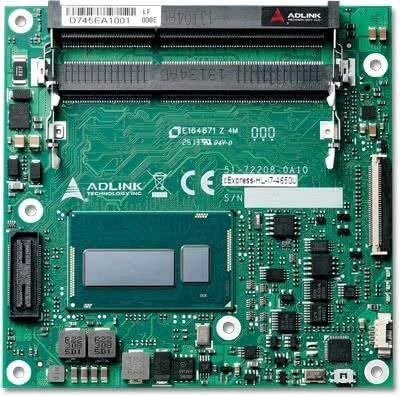

Moduł COM Express Compact Type 6 z Intel Core i7-4650U 1.7 GHz, LVDS/2 x DDI, 1 x GbE, 2 x UART, 2 x USB 3.0, 6 x USB 2.0, 4 x SATA-3 i HD-audio (0 ~ +60°C)
Features
Features
- 4th Generation Low Power Intel Core i7 Processor SoC
- Up to 16 GB DDR3L SDRAM at 1600 MHz
- Two DDI channels, one LVDS supporting 3 independent displays
- Four PCIe x1 or 1 PCIe x4, Gigabit Ethernet
- Four SATA 6 Gb/s, two USB 3.0, six USB 2.0
- Supports Smart Embedded Management Agent (SEMA) functions
- Extreme Rugged operating temperature: -40 ~ +85°C (optional)
- cExpress-HL-i7-4650U - COM Express Compact Type 6 module with dual-core Intel Core i7-4650U 1.7 GHz CPU and LVDS/2 x DDI, 1 x GbE, 2 x UART, 2 x USB 3.0, 6 x USB 2.0, 4 x SATA-3 and HD-audio interface (0 ~ +60°C)
- HTS-cHL-B - Heatspreader for cExpress-HL with threaded standoffs for bottom mounting
- HTS-cHL-BT - Heatspreader for cExpress-HL with through hole standoffs for top mounting
- THS-cHL-B - Low profile passive heatsink for cExpress-HL with threaded standoffs for bottom mounting
- THS-cHL-BT - Low profile passive heatsink for cExpress-HL with through hole standoffs for top mounting
- THSH-cHL-B - High profile passive heatsink for cExpress-HL with threaded standoffs for bottom mounting
- THSF-cHL-B - High profile heatsink with Fan for cExpress-HL with threaded standoffs for bottom mounting
