Moduł COM Express Compact Type 2 z Intel Atom N2600 1.60 GHz, VGA/LVDS, 1 x GbE, 8 x USB 2.0, 2 x SATA-2 i HD-audio (0 ~ +60°C)
Features
Features
- Dual-core Intel Atom Processor with Intel NM10 Express Chipset
- Up to 4 GB DDR3 SDRAM at 800/1066 MHz
- Three free PCIe x1 lanes
- VGA and Single/Dual Channel 18/24-bit LVDS
- SATA 3 Gb/s, IDE (PATA), GbE, USB 2.0
- Supports Smart Embedded Management Agent (SEMA) functions

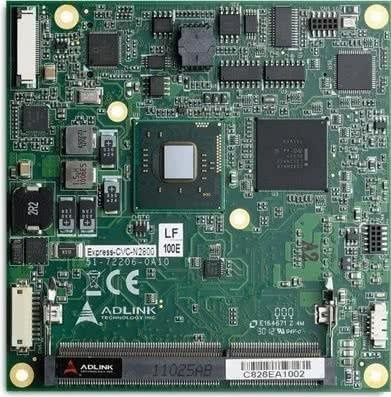

- Express-CVC-N2600 - COM Express Compact Type 2 module with dual-core Intel Atom N2600 1.60 GHz CPU and VGA/LVDS, 1 x GbE, 8 x USB 2.0, 2 x SATA-2 and HD-audio interface (0 ~ +60°C)
- HTS-CVC-B - Heatspreader for Express-CVC with threaded standoffs
- HTS-CVC-BT - Heatspreader for Express-CVC with through hole for top mounting
- THS-CVC-B - Low profile passive heatsink for Express-CVC with threaded standoffs
- THS-CVC-BT - Low profile passive heatsink for Express-CVC with through hole for top mounting
- THSF-CVC-B - Heatsink with Fan for Express-CVC with threaded standoffs
