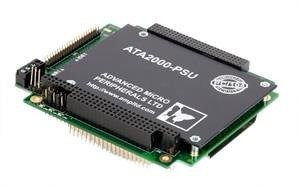

ATA2000-PSU (End of Life)

  • Karta PC/104-Plus - zasilacz i kontroler IDE (0 ~ +60°C)
  • ATA2000-PSU (End of Life)
Karta PC/104-Plus - zasilacz i kontroler IDE (0 ~ +60°C)



Features
  • Wide DC Input range - from +8 to 30 Vdc
  • Input reverse voltage and transient protection
  • Outputs:
    • +5 V at up to 5 A
    • +12 V at up to 800 mA (optional)
    • -12 V at up to 500 mA (optional)
  • Power to PC/104 and PC/104-Plus connectors
  • Controller compliant with ATA/ATAPI-6 and UDMA6 ATA/133 transfers
  • On board controller provides channel for external PATA IDE device and onboard CompactFlash port
  • PC/104-Plus Universal Add-in module (for ATA/IDE controller interface)
  • Rugged PC/104-Plus form factor
  • Operating temperature: 0 ~ +60°C
Specyfikacje
  • ATA interface

    • ATA2000-PSU accepts host commands through the PCI bus

  • PC/104-Plus

    • 133 MB/sec bus bandwidth
    • PC/104-Plus bus master/initiator
    • 3.3 V Add-in Module - compliant with 3.3 V PC/104-Plus bus signaling
    • Jumper-selectable PC/104-Plus stack level

  • Power Input

    • DC voltage input range of +8 to +30 Vdc

  • Power Output

    • +5 V power rails from the converters are output to the appropriate pins on the PC/104 bus connectors and the PC/104+ connector

  • IDE interface

    • Compliant with Programming Interface for Bus Master IDE
    • Controller, revision 1.0
    • Compliant with ATA/ATAPI-6 specifications
    • Compliant with UDMA6 ATA/133 Specification
    • Driver support for Windows2000, XP, XP-Embedded, Linux and QNX
Informacje dotyczące zamówień
  • ATA2000-PSU - PC/104-Plus Power Supply and Storage Controller (0 ~ +60°C)



Parametry techniczne:
Format karty:
PC/104-Plus
Temperatura pracy:
0ºC ~ 60ºC
End of Life:
Tak

Jeśli potrzebujesz dodatkowych informacji zadzwoń do nas (22 831 10 42) lub napisz wiadomość.

Gwarancja 12 miesięcy - Gwarancja udzielana przez sprzedawcę na okres 12 miesięcy.

Gwarancja standardowa 12 miesięcy
