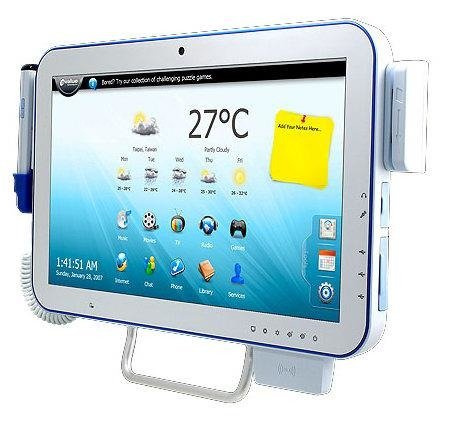

AID-173SHW01-S02R (End of Life)

Medyczny bezwentylatorowy komputer panelowy full-HD W17.3" z Intel Core i7-4650U 1.7 GHz, 2 GB DDR3 RAM, 32 GB SSD, projekcyjno-pojemnościowym ekranem dotykowym, VGA/LVDS/2x HDMI, 1x GbE, 1x RS-232, 1x RS-232/422/485, 1x USB 3.0, 3x USB 2.0 i audio (0 ~ +40°C); zasilanie 12 ~19 Vdc

Features

• 17.3" 16:9 1080P Display and Touch Panel
• Onboard 4th Gen Intel ULT Core i5 4300U 1.9GHz BGA Processor
• Choose Among Resistive Touch Panel and Projected Capacitive Touch Panel
• Optional TV Function
• Advanced VOIP Handset with Barcode Scanner
• Medical Supporting Peripherals (MSR/SCR/ RFID/ Barcode Scanner)
• Anti-Microbial Finish
• IP-65 on Front Panel Protection
• System Fanless Design
• Dimensions (L x H x D): 448 x 281 x 45 mm
• Light Weight: 4.7 Kg

Specifications

• Panel


• LCD Size: 17.3"
• Display Type: Full HD
• Resolution: 1920x1080
• Pixel pitch (mm): 0.1989 (H) x 0.1989 (V)
• Luminance: 300 Cd/m2
• Contrast ratio: 500~650
• Viewing angle:
  Horizontal 60-70;
  Vertical 50-60 Deg.
• Response time:
  TR 2-8 ms;
  TF 6-12 ms
• Backlight: LED
• Touch Type: 5 Wires resistive & Projective Capacitive
• Touch Light Transmission: 80% +/- 3%
• Touch Controller: Onboard USB touch (EETI)


• System


• Processor: Intel Core i7/ i5/ i3 Processor
• System Chipset: Intel QM87 Express Chipset
• System Memory: 1 x204-Pinup to 8 GB
• Watchdog Timer: H/W Reset, 1sec. ~ 65535min.
• H/W Status Monitor: Monitoring CPU & System Temperature and Voltage
• SBC: AID-173SHW


• Expansion


• Expansion:
  2x Mini PCIe
  1x Mini PCIe Supports mSATA


• Storage


• Storage: 1x 2.5" Drive Bay


• I/O


• USB:
  1 xUSB 3.0
  3 xUSB 2.0
• SATA:
  1x SATA III
• Com Port:
  1x RS-232
  1x RS-232/422/485
• Other:
  1x HDMI Input
  1x HDMI Output
  1x Earphone
  1x Mic


• Display


• Chipset: Intel QM87 Chipset Integrated
  Supports triple display
• Resolution:
  VGA: Max. resolution 2048x1536
  LVDS: Max. resolution 1920x1200


• Audio


• Chipset: Realtek ALC892
• Audio Interface: Mic-In and Line-Out
• Speaker: Output 2x 2 W


• Ethernet


• Chipset: Intel WGI1218LM
• Ethernet Interface: 10/100/1000 Base-Tx GbE compatible
• Lan Port: 1 x RJ-45


• Mechanical & Environmental


• Operating Temp: 0 ~ +40°C
• Storage Temp: -20 ~ +65°C
• Operating Humidity: 20 ~ 80%
• Weight: 4.7 Kgs
• Dimension (L x W x H): 505 x 336 x 54.5 mm
• Vibration Test:
  With SSD/mSATA: 1.5 Grms, IEC 60068-2-64, Random, 5 ~ 500 Hz, 30 min/axis
• Shock Test:
  With CF/SSD: 10 Grms, IEC 60068-2-27, Half Sine, 11 ms
• System Fan: Fanless
• Construction - Front: White Plastic
• Construction - Rear: White Plastic
• Finishing: Anti-microbial


• Certifications


• Certification Information:
  CE
  FCC Class B


• Software Support
  • OS Information:
    Win 7
    Win 8
    Linux


• Power Requirement


• Power Connector: DC Jack
• Power Requirement: +12 ~ +19 Vdc
• Power Mode: AT/ATX (ATX is default setting)
• Adapter:
  Input: 100 ~ 240 Vac / 50~ 60 Hz;
  Output 65 W Adapter (19 V / 3.43 A Adapter)

Ordering Information

• AID-173SHW01-S02R - PCap Touch/Intel Core i7-4650U Processor/32 GB SSD/2 GB DDR3 Memory/MSR/SCR/RFID/Handset/19 V Adapter
