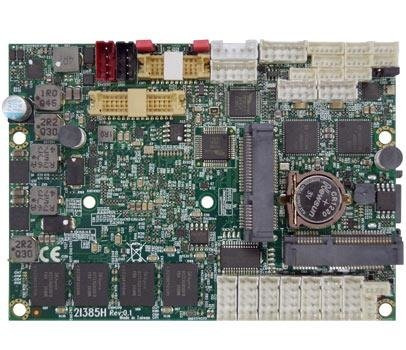

2I385HW-E3845/4GB

Komputer jednopłytkowy 2.5" z procesorem quad-core Intel Atom E3845 1.91 GHz, 4 GB DDR3L SDRAM, VGA/LVDS, 2x GbE, 4x RS-232/485, 5x USB 2.0, 1x SATA i HD-audio (-20 ~ +70°C); zasilanie 9 ~ 36 Vdc

Features

• Embedded Intel Bay Trail-I E3845 CPU / Chipset
• On Board 4 G DDR3L, LVDS (or eDP option), VGA, HD Audio, 4x COM
• 2x Intel GbE LAN, 5x USB 2.0
• 2x Mini PCIe

Specifications

• CPU Type:  Bay Trail-I E3845 1.91GHz ( Quad core processor )
• MB Chipset: Intel Bay Trail-I E3845 chipset
• BIOS: Insyde UEFI BIOS
• Graphics:
  Intel's 7th generation (Gen 7) graphics and media encode/decode engine,
  Supports DX*11, OpenGL 3.0 (OGL 3.0), OpenCL 1.2 (OCL 1.2), OpenGLES 2.0
• System Memory: On Board 4 G DDR3L 1333 MHz
• SSD storage:
  mSATA: Yes
  On Board SSD: N/A
• VGA: Yes
• LVDS: Dual channel 24 / 48 bits (or eDP option)
• Touch Screen: COM interface Touch Screen controller
• Ethernet: 2x Intel GbE
• Audio: Yes
• Mini-PCIe:
  Slot 1: (Full Size) PCIe / USB / mSATA
  Slot 2: (Half Size) USB/mSATA
• SIM Card Holder: N/A
• SATA: 1 ( share with Full Size mSATA)
• USB: 5x USB 2.0
• Serial IO: 4x RS232 (optional to RS485)
• GPIO: 4x DI / 4x DO
• WDT: Hardware Watch Dog Timer, 0 ~ 255 sec programmable
• PS2 KB/MS: Yes
• Power Input: On board +9 ~ +36 V; DC IN +12 V Optional
• Expansion: GPS, IEEE1394, 3G/4G, Bluetooth, WI-FI, I/O, Video Card
• Dimension: 102 x 73 mm (2.5 inch)
• Operation Temperature: -20 ~ +70°C
• Operation Humidity: 5 ~ 95%, non-condensing
• Chassis:
  Box PC: Waterproof System
  Panel PC: 10.1", 13.3" (16:9)
  10.4", 12.1", 15" (4:3)

Ordering Information

• 2I385HW-E3845/4GB - 2.5" SBC with quad-core Intel Atom E3845 1.91 GHz CPU, 4 GB DDR3L SDRAM and VGA/LVDS, 2x GbE, 4x RS-232/485, 5x USB 2.0, 1x SATA andi HD-audio interface (-20 ~ +70°C); 9 ~ 36 Vdc power
