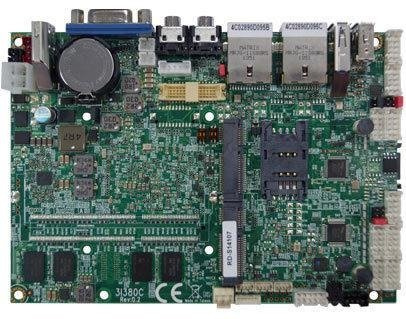

3I380CW-E3845/4GB

Komputer jednopłytkowy 3.5" z procesorem quad-core Intel Atom E3845 1.91 GHz, 4 GB DDR3L RAM, VGA/LVDS/HDMI, 2x GbE, 5x RS-232, 1x RS-422/485, 1x USB 3.0, 5x USB 2.0, 1x SATA i HD-audio (-20 ~ +70°C); zasilanie 9 ~ 36 Vdc

Features

• Embedded Intel Bay Trail-I E3845 CPU / Chipset
• On Board 4 G DDR3L (1x DDR3L SODIMM socket for OEM option)
• Multiple Independent display: VGA, HDMI & LVDS
• 2x Intel GbE LAN, 1x USB 3.0, 5x USB 2.0, Line-out, Mic-in, 6x COM
• 2x Mini PCle, 1x SIM card socket

Specifications

• Chipset: Intel Bay Trail-I E3845 1.91 GHz (Quad Core)
• Memory:
  • Type/Capacity: DDR3L 1333 MT/s
  • SO-DIMM: 1 (OEM)
  • On board Memory: 4 GB
• SSD storage:
  • mSATA: YES
  • On Board SSD: Optional
• VGA: Yes
• LVDS: Single/Dual channel 18/24 bits
• Touch Screen: USB interface Touch Screen controller
• DVI/HDMI: HDMI
• Ethernet: 2x Intel GbE
• Audio: Line-out / Mic-in
• Mini-PCIe:
  • Slot 1: PCIe / mSATA / USB
  • Slot 2: PCIe / USB
• SIM Card Holder: 1
• SATA: 1
• USB: 1x USB 3.0 (external), 3x USB 2.0 (external), 2x USB 2.0 (internal, share with mini card)
• Serial IO: 5x RS-232 (internal), 1x RS-422/485 (internal)
• GPIO: 8x DI / 8x DO (Internal)
• WDT: Yes
• PS2 KB/MS: Internal
• Power Input: Wide Range DC IN +9 ~ +36 V
  CPC-Car Power Control (optional)
• Expansion: GPS, IEEE1394, 3G/4G, Bluetooth, WI-FI, I/O, Video Card
• Operating Temp.: -20 ~ +70°C
• Chassis:
  Box PC: TWIN
  Panel PC: 7", 10.1", 13.3" (16:9)
  8.4", 10.4", 12.1", 15", 17" (4:3)

Ordering Information

• 3I380CW-E3845/4GB - 3.5" SBC with quad-core Intel Atom E3845 1.91 GHz CPU, 4 GB DDR3L RAM and VGA/LVDS/HDMI, 2x GbE, 5x RS-232, 1x RS-422/485, 1x USB 3.0, 5x USB 2.0, 1x SATA and HD-audio interface (-20 ~ +70°C); 9 ~ 36 Vdc power
