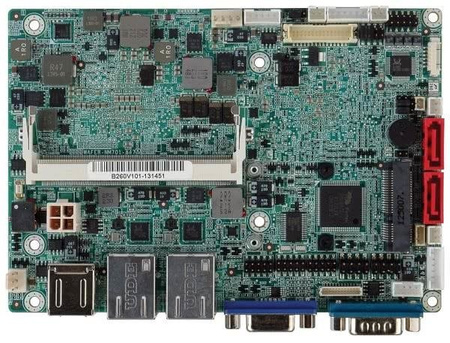

Name: WAFER-NM701-1007U
Brand: IEI Integration Corp.

Features

3.5” SBC with on-board 32 nm 1.5 GHz Intel Celeron 1007U dual-core mobile processor
VGA and LVDS support dual display
One 204-pin 1333/1600 MHz DDR3 SO-DIMM supports up to 8 GB memory
Easy fanless thermal design by assembling heat spreader on system chassis
Supports four COM, six USB 2.0, two SATA 3 Gb/s, one mSATA and audio
IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

CPU: On-board 32 nm 1.5 GHz Intel Celeron 1007U dual-core mobile processor
PCH: Intel NM70
BIOS: UEFI BIOS
Memory: One 204-pins 1333/1600 DDR3 SO-DIMM supported
(system max. 8 GB)
Graphics:
Intel HD Graphics Gen 6 support for DX10.1 and OpenGL 3.0
Full MPEG2, VC1, AVC Decode
Display Output:
Dual independent display support
VGA integrated in NM70 (2048x1536@75 Hz)
Dual channel 24-bit LVDS integrated in NM70 (1920x1600@60 Hz)
Ethernet: Dual PCIe GbE by Realtek RTL8111E controller with ASF 2.0 support
Super I/O: Fintek F81867
I/O Interface:
3 x RS-232 (1 on rear, 2 by pin header)
1 x RS-422/485 (by pin header)
2 x USB 2.0 (on rear)
4 x USB 2.0 (by pin header)
2 x SATA 3 Gb/s with SATA 5 V power connector
1 x 6-pin wafer for PS/2 KB/MS
Audio: Realtek ALC662 HDA codec (Line-in, Line-out, Mic)
Front Panel: 1 x 10-pin (1x10) header
SMBus: 1 x 4-pin (1x4) wafer
Expansion:
1 x Full/Half-size PCIe Mini card slot with mSATA support
Digital I/O: 8-bit digitial I/O (4-bit input/ 4-bit output)
Fan Connector:
1 x 4-pin CPU fan connector
1 x 3-pin system fan connector (smart fan support)
Power Supply: 12 V only, AT/ATX support
Power Consumption: 12 V@2.72 A
(Intel mobile Celeron 1007U 1.5 GHz processor with 1333 MHz 8 GB DDR3 memory)
Watchdog Timer: Software programmable support 1~255 sec. System reset
Operating Temperature: -10 ~ +60°C
Storage Temperature: -20 ~ +85°C
Operating Humidity: 5 ~ 95%, non-condensing
Dimensions: 146 x 102 mm
Weight: GW:600 g / NW:250 g

Ordering Information

WAFER-NM701-1007U-R10 - 3.5” SBC with on-board Intel Celeron Dual-core 1007U 1.5 GHz Processor, DDR3, VGA/LVDS, Dual GbE, USB 2.0, mSATA, SATA 3 GB/s and Audio
