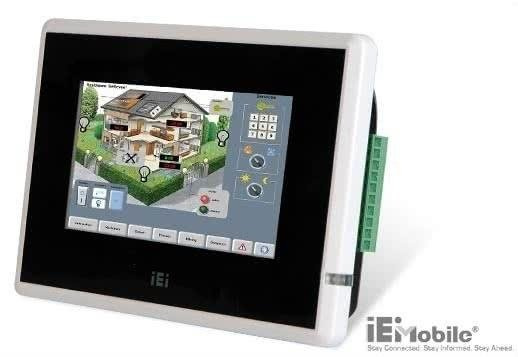

Bezwentylatorowy komputer panelowy 4,3" 480x272 500 cd/m2 z procesorem Samsung S3C2416 ARM926EJ 400 MHz, 128 MB RAM, rezystancyjnym ekranem dotykowym, 1x LAN, 1x RS-232/422/485, 1x USB 1.1, 1x CAN, 6x GPIO, 802.11b/g Wi-Fi i audio; system Windows CE 6.0
Features
- 4.3" TFT WQVGA LCD with resistive touchscreen
- Samsung S3C2416 400 MHz CPU
- Powered by Windows CE 6.0
- Built-in Ethernet LAN and Wi-Fi
- Built-in CAN-bus 2.0b and GPIO
- Built-in RS-232/422/485 Port
Specifications
- System
- CPU: Samsung S3C2416 400 MHz
- Operating System: Win CE 6.0
- Bootloader Storage: 128 MB
- RAM: 128 MB SDRAM
- Program Storage Area: Bootloader Storage
- Display
- LCD Size: 4.3"
- LCD Color: 262 K
- Display Resolution: WQVGA
- LCD Brightness: 500 cd/m2
- Dot Pitch (mm): 0.066(H) x 0.198(V)
- Viewing Angle (H-V): 140 / 120
- Backlight MTBF: 20000
- Touch Screen: Resistive Touch
- Multimedia Support: MPEG 1/2/4/H.263
- I/O and Communication
- I/O Interface:
• 1 x RS-232/422/485 COM port (software controllable)
• 1 x Reset button
• 1 x 10/100 Mbps LAN
• 1 x USB 1.1 host
• 1 x CAN bus 2.0b
• 6 x GPIO (voltage range 2.97 ~ 3.63 V)
• 1 x 2-pin terminal block DC input
• 1 x miniSD card slot - Audio: 2 x 1 W speaker
- Wireless LAN: 802.11 b/g
- Dimensions
- Construction Material: ABS + PC Plastic
- Net Weight: 0.7 kg
- Front Panel Color: Black
- Dimensions (W x H x D): 145 x 104 x 34 mm
- Environmental and Power
- Operating Temperature: 0 ~ +50ºC
- Front Panel Protection: IP 65
- Vibration and Shock:
• Axes: 3 axes (Vertical / Transverse / Longitudinal)
• 10 ~ 500 Hz, 60 min/axis
• Equivalent to Z: 2.18 Grms, X: 1.6 Grms, Y: 1.96 Grms - Humidity: 5 ~ 90% RH
- Power Mode: AT
- Power Requirement: 12 ~ 36 Vdc input
- Power Consumption: 7 W
Ordering Information
- IOVU-430S-CE6/ST/WL/-R11 - RISC Fanless Panel PC, 4.3” LCD, ARM S3C2416X40-Y640 400 MHz CPU, 128 MB SDRAM with 802.11b/g Wi-Fi function, Win CE6.0, RoHS
Optional Accessories
- 63000-FSP060DBAB1555-RS - 12 V/5 A DC 60 W power adapter with bare wire, 90 ~ 264 Vac input
- IOVU-430M-IWC/B/-R10 - In-wall cage (Black)
- IOVU-430M-IWC/W/-R10 - In-wall cage (White)
Parametry techniczne:
| End of Life: | Tak |
