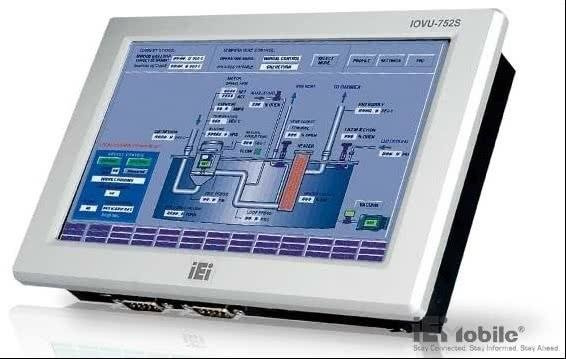

IOVU-752S-CE6/ (End of Life)

Bezwentylatorowy komputer panelowy 7" 800x480 500 cd/m2 z procesorem Samsung S3C6410 ARM11 677 MHz, 256 MB RAM, rezystancyjnym ekranem dotykowym single-touch, 1x LAN, 1x RS-232, 1x RS-232/422/485, 2x USB 2.0 i audio; system Windows CE 6.0

Features

• RISC-based processor provides high performance and extremely low power consumption
• PoE (Power over Ethernet) function
• 7” widescreen WVGA TFT LCD with resistive touch screen
• Samsung S3C6410 ARM11 677 MHz processor and 256 MB DDR2
• Preinstalled Windows CE6.0 operating system
• Sleek and compact metal design with ultra thin frames
• Built-in 1.5 W speakers
• IP 64 compliant front panel
• Fanless design for rigorous environments

Specifications

• System


• CPU: Samsung S3C6410 ARM11 677 MHz
• Operating System: Win CE 6.0
• Bootloader Storage 128 MB
• RAM: 256 MB DDR2
• Program Storage Area: Bootloader Storage


• Display


• LCD Size: 7”
• LCD Color: 262 K
• Display Resolution: WVGA
• LCD Brightness (cd/m2): 500
• Dot Pitch (mm): 0.1905(H) x 0.1905(V)
• Viewing Angle (H-V): 140 / 130
• Backlight MTBF: 50000
• Touch Screen: Resistor Type
• Multimedia Support: MPEG-4/H.263/H.264


• I/O and Communication


• I/O Interface:
  1 x RS-232/422/485 (software controllable)
  1 x RS-232
  1 x 10/100Mbps LAN (supports PoE)
  2 x USB 2.0 host
  1 x Reset button
  1 x AT mode power switch
  1 x Power jack
• Audio: 2 x 1.5 W speaker
• Wireless LAN: N/A


• Dimension


• Construction Material: Aluminium (Al 6061)
• Net Weight (kg): 1.2
• Front Panel Color: Silver
• Dimensions (W x H x D): 188 x 124 x 40 mm


• Enviromental


• Operating Temperature: -10 ~ +60°C
• Humidity: 5 ~ 90% RH
• Front Panel Protection: IP64 compliant


• Power


• Power Mode: AT
• Power Requirement: 6 ~ 30 Vdc
• Power Consumption: 14 W

Ordering Information

• IOVU-752S-CE6/-R10 -7" RISC Fanless Panel PC with SAMSUNG S3C6410X66-YB40 667  MHz CPU, PoE function, WIN CE6.0, RoHS

Optional Accessories

• AFLPK-12 - Panel mount kit


• AFLWK-12 - VESA 75 wall mount kit


• ARM-11-RS - LCD Monitor/PPC Arm kit loading capacity from 3kg~7kg


• STAND-A08-RS - LCD Monitor/PPC Stand kit for VESA 75 and support up to 5 Kg


• VSTAND-A07 - LCD Monitor/PPC STAND V type for VESA 75, 0~90 degree adjustable hinge and support up to 2.5 Kg


• AFLP-12BMSR-U - USB Magnetic Card Reader


• AFLP-BRW01-U - USB Barcode Reader (White)


• AFLP-BRB01-U - USB Barcode Reader (Black)


• AFLP-CDB01 - VFD Customer Display (Green) 5 x 7 dot matrix (Black)


• AFLP-CDW01 - VFD Customer Display (Green) 5 x 7 dot matrix (White)


• 63000-FSP060DBAB1553-RS - 12 V/5 A DC 60 W power adapter, 90 ~ 264 Vac input


• 63000-FSP060DBAB1555-RS - 12 V/5 A DC 60 W power adapter with bare wire, 90 ~ 264 Vac input
