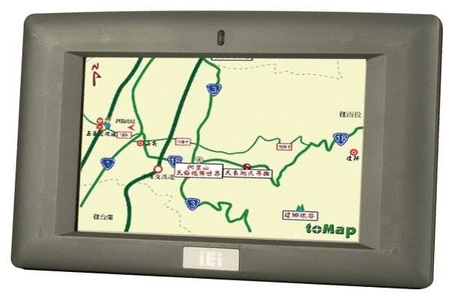

AFL-07A-N270/R/1G (End of Life)

Bezwentylatorowy komputer panelowy Wide-7" 800x480 500 cd/m2 z procesorem Intel Atom N270 1.6 GHz, 1 GB DDR2, rezystancyjnym ekranem dotykowym, 1 x RS-232, 1 x RS-232/422/485, 2 x GbE, 1 x 802.11b/g/n, 2 x USB 2.0, 1 x SATA i audio (-10 ~ +50°C)

---

Features

• 7” widescreen WVGA LED backlight TFT LCD with resistive touch screen
• Compact design with plastic housing
• Fanless cooling system
• Selectable AT/ATX power mode
• System memory up to 2 GB SDRAM
• Built-in 802.11b/g/n Wireless LAN
• Built-in speakers
• One compactFlash slot
• IP 64 compliant front panel
• IEI One Key Recovery solution allows you to create rapid OS backup and recovery
  (suggest with over 4 GB storage capacity)

Specifications

• LCD Size: 7”
• Max Resolution: 800 x 480
• Brightness (cd/m2): 500
• Contrast Ratio: 400:1
• LCD Color: 262 K
• Pixel Pitch (mm): 0.0635 (H) x 0.1905 (V)
• Viewing Angle (H-V): 140º / 110º
• Backlight MTBF: 50000 hrs (LED Backlight)
• SBC Model: AFLMB-945GSE-N270-R10
• CPU: Intel Atom processor N270 1.6 GHz CPU
• Chipset: Intel 945GSE + ICH7M
• RAM: Supports one 400 MHz or 533 MHz DDR2 SO-DIMM (2 GB max)
• I/O Ports:
  • 1 x RS-232 COM Port
  • 1 x RS-232/422/485 COM Port
  • 2 x RJ-45 for GbE
  • 2 x USB 2.0
  • 1 x Power Switch
  • 1 x Reset Button
  • 1 x Power Jack
  • 1 x External SATA
  • 1 x Audio Jack (Line-out)
• Storage: CF Type II

• Watchdog Timer: Software programmable supports 1~255 sec. system reset
• Audio: AMP 1.5 W + 1.5 W (internal speaker)

• Wireless Connection: 1 x Wireless LAN 802.11b/g/n Module (internal PCIe Mini card interface)

• Construction Front Panel: ABS + PC Plastic front frame
• LED Function: 1 x LED on front panel for power on/off
• Mounting: Panel, Wall, Rack, Stand or Arm mounting VESA 75 x 75 mm
• Front Panel Color: Gray 7539U
• Dimensions (WxHxD): 226 x 140 x 41 mm

• Operation Temperature: -10 ~ +50°C
• Storage Temperature: -20 ~ +60°C
• N/G Weight: 0.6 Kg
• IP Level: Front Frame IP64
• Safety & EMC: CE / FCC
• Touch Screen: 4-wire Resistive Type (touch controller IC is on board)
• Power Adapter:
  • P/N: 63000-FSP036RAB608-RS
  • 36 W Power Adapter
  • Input: 90 ~ 264 Vac, 50/60 Hz; Output: 12 Vdc

• Power Requirement: 12 Vdc
• Power Consumption: 23 W

Ordering Information

• AFL-07A-N270/R/1G-R23 - 7” 500 cd/m² WVGA fanless panel PC with Intel Atom N270 1.6 GHz, 802.11b/g/n wireless module, touch screen ,1 GB DDR2 533, R23

Optional Accessories

• AFLPK-12 - Panel Mounting Kit


• AFLWK-12 - Wall Mounting Kit


• AFLRK-07 - Rack Mounting Kit


• ARM-11-RS - Arm


• ARM-31-RS - Arm


• STAND-100-RS - Stand


• VSTAND-A07-R11 - Vstand


• IDD-930160-KIT - 9 ~ 30 Vdc to 12 Vdc Converter Module


• AFLP-08AMSI-U - Hybrid Card Reader


• AFLP-08AMSR-U - Magnetic Stripe Reader


• AUPS-A10-R10 - 12 Vdc Input UPS  (7.4 V 3800 mAH)


• AUPS-A20-R10 - 9 ~ 36 Vdc Input UPS  (7.4 V 3800 mAH)


• AFL-BT-KIT02-R10 - Bluetooth V2.0+EDR


• AFLCF-07-N270-CE060-R23 - OS Win CE 6.0 (128 MB CF card)


• AFLCF-07-N270-XPE-R23 - OS Win XPE (1 GB CF card)


• AFLCF-07-N270-LNX-R23 - OS Linux (2 GB CF card)


• AFLCF-07-N270-WES7E-R23 - OS Win 7 Embedded (4 GB CF card)
