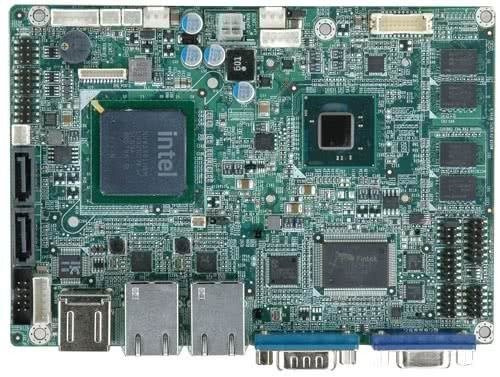

WAFER-PV-N4551-2GB

Features

• 3.5" form factor with Intel Atom N455 processor support DDR3 memory
• 12V only single voltage design for AT/ATX power
• On board DDR3 800 MHz 1GB SDRAM
• Support VGA and 18-bit single-channel LVDS with dual-display support
• Complete I/O with eight USB, two SATA II, one CF II, four COM and audio
• IEI One Key Recovery solution allows you to create rapid OS backup and recovery

Specifications

• CPU: Intel Atom N455 single-core processor 1.66 GHz/512 KB L2 cache
• Chipset: ICH8M
• BIOS: UEFI BIOS
• Memory: On board DDR3 800 MHz 2 GB SDRAM
• Graphic: GMA 3150
  Graphic core speed 200 MHz
• Display Interface:
  Analog CRT up to 1400x1050
  Support for CRT hot plug
  Single-channel 18-bit LVDS, resolution support up to XGA 1024x768
• Ethernet: Dual GbE by Realtek RTL8111E,LAN1 with ASF2.0 support
• I/O Interfaces:
  3 x RS-232
  1 x RS-232/422/485 with Auto Flow control
  1 x KB/MS
  2 x SATA II
  8 x USB 2.0
  1 x CF Type II
• Digital I/O: 8-bit digital I/O, 4-bit input / 4-bit output
• Expansion: 1 x PCIe Mini card slot (PCIe + USB + SATA signal) support IEI mini DOM
• Audio: Realtek ALC888 HD codec
• Watchdog Timer: Software programmable support 1~255 sec. system reset by Super I/O
• Power Supply:
  12V input only AT/ATX mode select
  2x2 pin power connector
• Super IO: Fintek F81865
• FAN Connector:
  1 x 3-pin CPU fan
  1 x 3-pin system fan
• Power Consumption: 1.33 A @ 12 V (Intel Atom N455 with 2 GB 1066 MHz DDR3)
• Temperature:
  -20°C ~ +70°C with free air,
  -20°C ~ +75°C with force air
• Humidity: Operation: 5% ~ 95%, non-condensing
• Dimensions: 146 x 102 mm
• Weight: GW: 650g / NW: 170g

Ordering Information

• WAFER-PV-N4551-2GB-R12 - 3.5" SBC with Intel Atom N455 1.66 GHz, DDR3 2 GB Memory on board, VGA/LVDS, Dual GbE, USB2.0 and SATA 3 Gb/s, audio, RoHS

Optional Accessories

• 32000-070301-RS - Dual Port USB cable


• 32000-0628000-RS - SATA cable


• 32205-000300-100-RS - RS-232/422/485 cable


• 19FTS00032100-000001-RS - CPU fan
