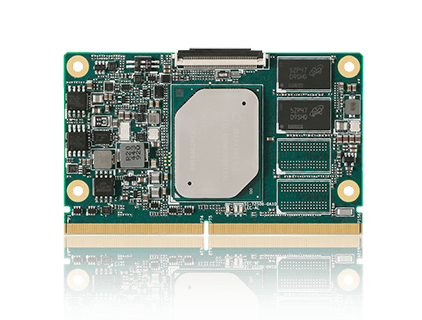

LEC-AL-E3930-2G-8G-ER

Moduł SMARC 2.0 ("Smart Mobility ARChitecture") short size (krótki) z procesorem Intel dual core Atom E3930 1,8 GHz 6,5W TDP, 2GB DDR3L, 8GB eMMC flash, dual LVDS / HDMI / D+, 1x GbE, 1x SPI, 1x eSPI, 4x I²C, 4x UART, 1x SMBus, 1x LPC, 1x DB40, 12x GPIO (interrupt capable), 1x USB 2.0 OTG, 5x USB 2.0 host USB 3.0 2x USB 3.0 host, 1 x SATA3,  HD audio (-40 ~ +85°C)

Memory

• Up to 8 GB DDR3L at 1867 MT/s
• Single/dual channel memory 1-2 64bit, non-ECC

Embedded BIOS

• AMI UEFI with CMOS backup in 8 MB SPI BIOS, Fast Boot support

Cache

• 2 MB L2 cache

SEMA Board Controller

• Supports: Voltage/Current monitoring, Power Sequencing, Logistics and
• Forensic Information, Flat Panel Control, IÇC Bus Control, GPIO Control, User
• Flash, Failsafe BIOS (dual BIOS), Watchdog Timer and Fan Control

Ethernet

• Intel® MAC/PHY
• 1x Intel® i210-IT or i210-AT Ethernet controller Interface
• 1x 10/100/1000 GbE, IEEE 1588 trigger signals

Video, GPU Feature Support

• 9th generation Intel® graphics core architecture with up to 18 execution units, supports three independent displays 2D and 3D graphics hardware acceleration
• Support for DirectX 12, OpenGL 4.2, OpenCL 1.2 Video decode HW acceleration for H.265/HEVC, H.264, MPEG2, MVC, VC-1, WMV9, JPEG/MJPEG, VP8, VP9Video encode HW acceleration for H.265/HEVC, H.264, MPEG2, MVC, JPEG/MJPEG, VP8, VP9 (resolution depends on operating system)

LVDS

• Dual channel LVDS (18/24-bit)

HDMI/DP++

• HDMI up to 3840 x 2160 @ 30Hz
• DP++
• DP++ up to 4096 x 2160 @ 60Hz

Power

• Standard Input
• 3.0 V~5.25 V DC ±5%

Power States

• C0-C6, S0, S3, S4, S5

Audio

• Chipset - Intel® HD Audio integrated in SoC
• Ports - 1x IÇS and 1x HDA for audio codec on carrier

I/O Interfaces

4x PCIe x1 Gen2

1x USB 2.0 OTG, 5x USB 2.0 host

2x USB 3.0 host

1x SATA 3.0 (6 Gbit/s)

1x SDIO 3.0 (4bit)

2x MIPI CSI camera (2L/4L)

1x SPI, 1x eSPI, 4x IÇC, 4x UART, 1x SMBus, 1x LPC, 1x DB40

Onboard eMMC 5.0 (4-64 GByte)

12x GPIO (interrupt capable)

Operation System

• Standard Support: Windows 10 IOT Enterprise, Windows 10 IOT Core, Yocto Linux
• On Request: VxWorks, Android

Mechanical and Environmental

• Form Factor
• SMARC Specifications v2.0

Dimension

SMARC short size module, 82 mm x 50 mm

Operating Temperature

• Standard: 0°C to +60°C
• Extreme Rugged: -40ºC to +85ºC

Humidity

• 5-90% RH operating, non-condensing
• 5-95% RH storage (and operating with conformal coating)

Shock and Vibration

• IEC 60068-2-64 and IEC-60068-2-27, MIL-STD-202 F, Method 213B, Table 213-I,
• Condition A and Method 214A, Table 214-I, Condition D

HALT

• Thermal Stress, Vibration Stress, Thermal Shock and Combined Test

Intelligent Middleware

• SEMA®
• Local management, control of embedded computer systems Extended EAPI for monitoring, controlling and analytics applications Multiple OS support and across platforms (x86, ARM)

P/N: LEC-AL-E3930-2G-8G-ER - SMARC Short Size Module with Intel Atom E3930, dual core, 2GB DDR3L, 8GB eMMC, -40°C to 85°C, Extreme Rugged operating temperature: -40 ~ +85°C
